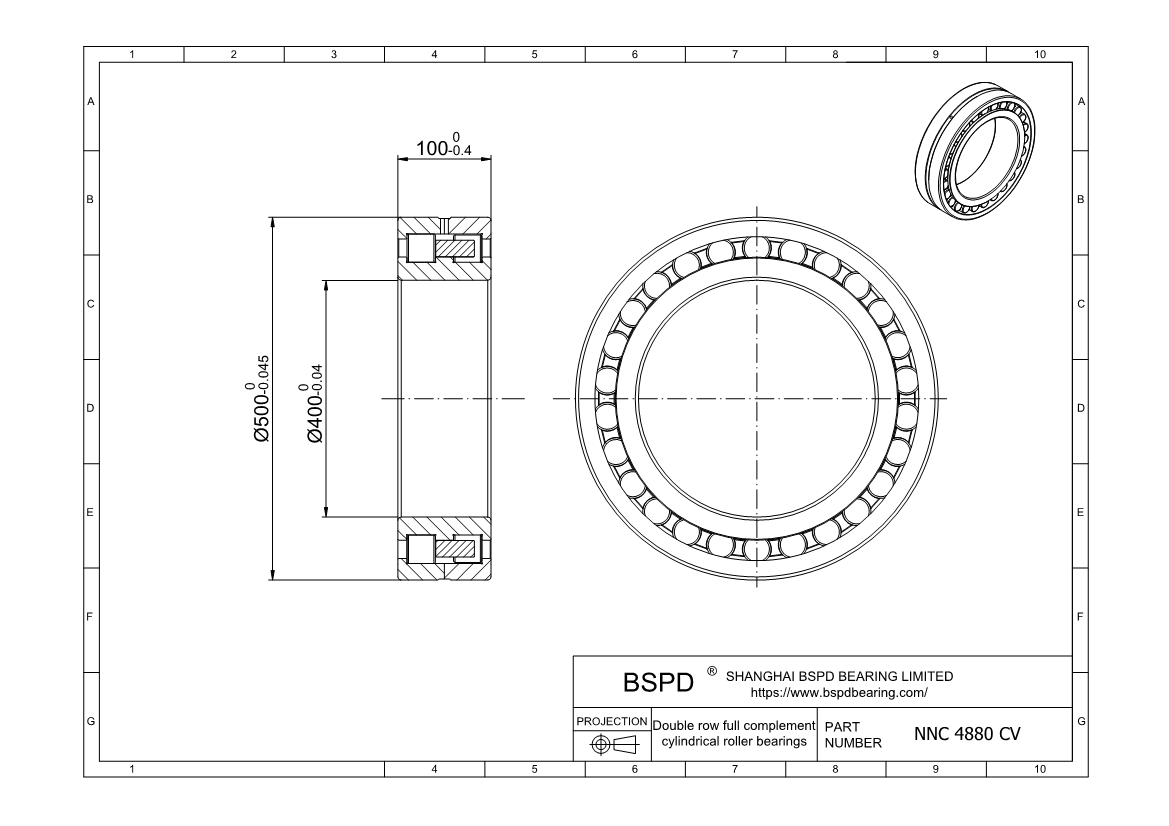

NNC 4880 CV Double row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 400 mm； Outer Diameter: 500 mm； Width (Thickness): 100 mm;

REQUEST FOR QUOTE

Product Attributes

Product Number	NNC 4880 CV
Bore diameter	400 mm
Outside diameter	500 mm
Width	100 mm
Basic dynamic load rating	1420 kN
Basic static load rating	3750 kN
Fatigue load limit	325 kN
Reference speed	500 r/min
Limiting speed	630 r/min
Mass	46.5 kg
Shoulder diameter of inner ring	434 mm
Shoulder diameter of outer ring	462 mm
