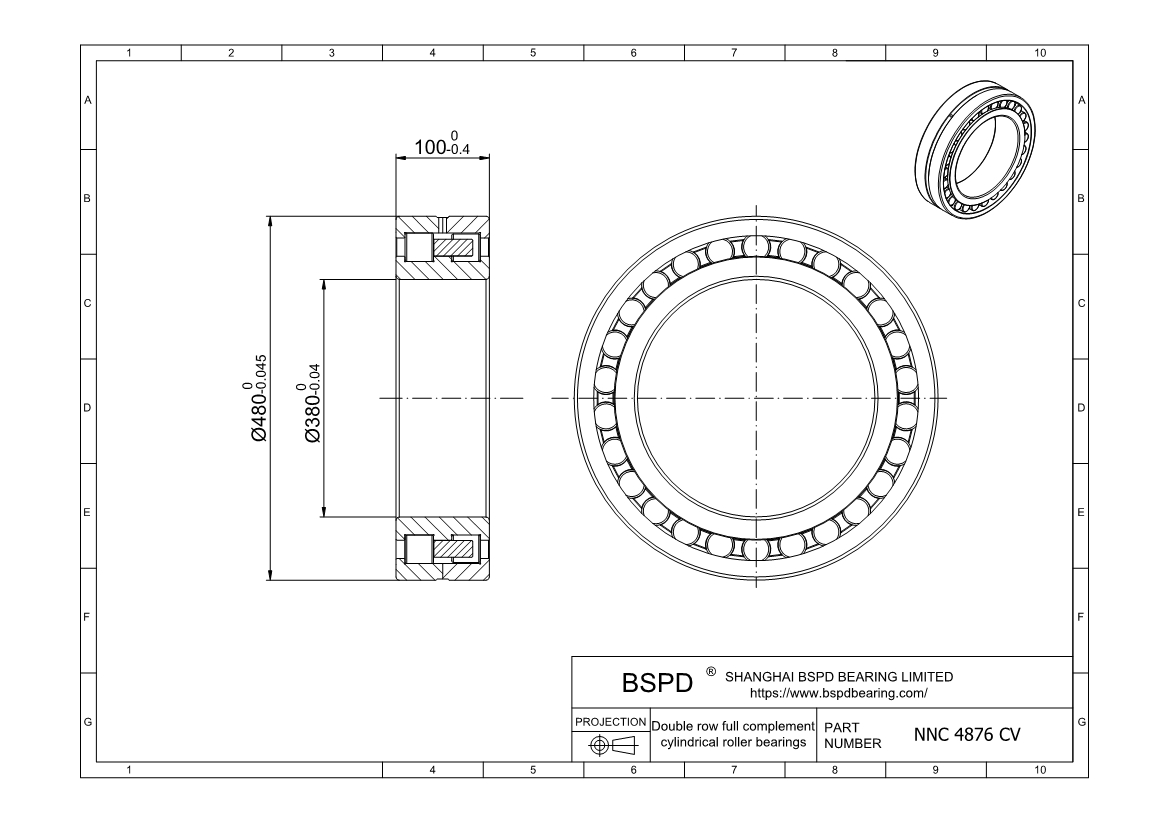

NNC 4876 CV Double row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 380 mm； Outer Diameter: 480 mm； Width (Thickness): 100 mm;

REQUEST FOR QUOTE

Product Attributes

Product Number	NNC 4876 CV
Bore diameter	380 mm
Outside diameter	480 mm
Width	100 mm
Basic dynamic load rating	1400 kN
Basic static load rating	3650 kN
Fatigue load limit	315 kN
Reference speed	530 r/min
Limiting speed	670 r/min
Mass	45.5 kg
Shoulder diameter of inner ring	419 mm
Shoulder diameter of outer ring	447 mm

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
