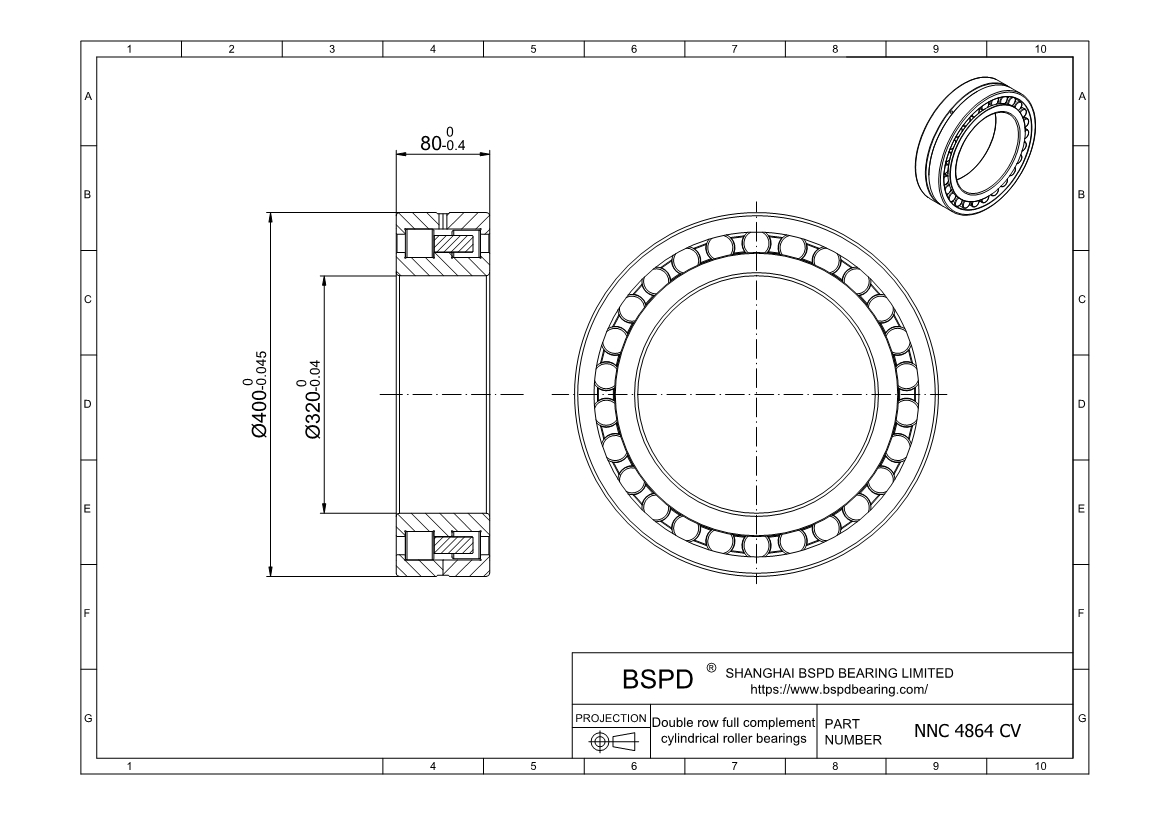

NNC 4864 CV Double row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 320 mm； Outer Diameter: 400 mm； Width (Thickness): 80 mm;

REQUEST FOR QUOTE

Product Attributes

Product Number	NNC 4864 CV
Bore diameter	320 mm
Outside diameter	400 mm
Width	80 mm
Basic dynamic load rating	897 kN
Basic static load rating	2280 kN
Fatigue load limit	208 kN
Reference speed	630 r/min
Limiting speed	800 r/min
Mass	24 kg
Shoulder diameter of inner ring	352 mm
Shoulder diameter of outer ring	372 mm
