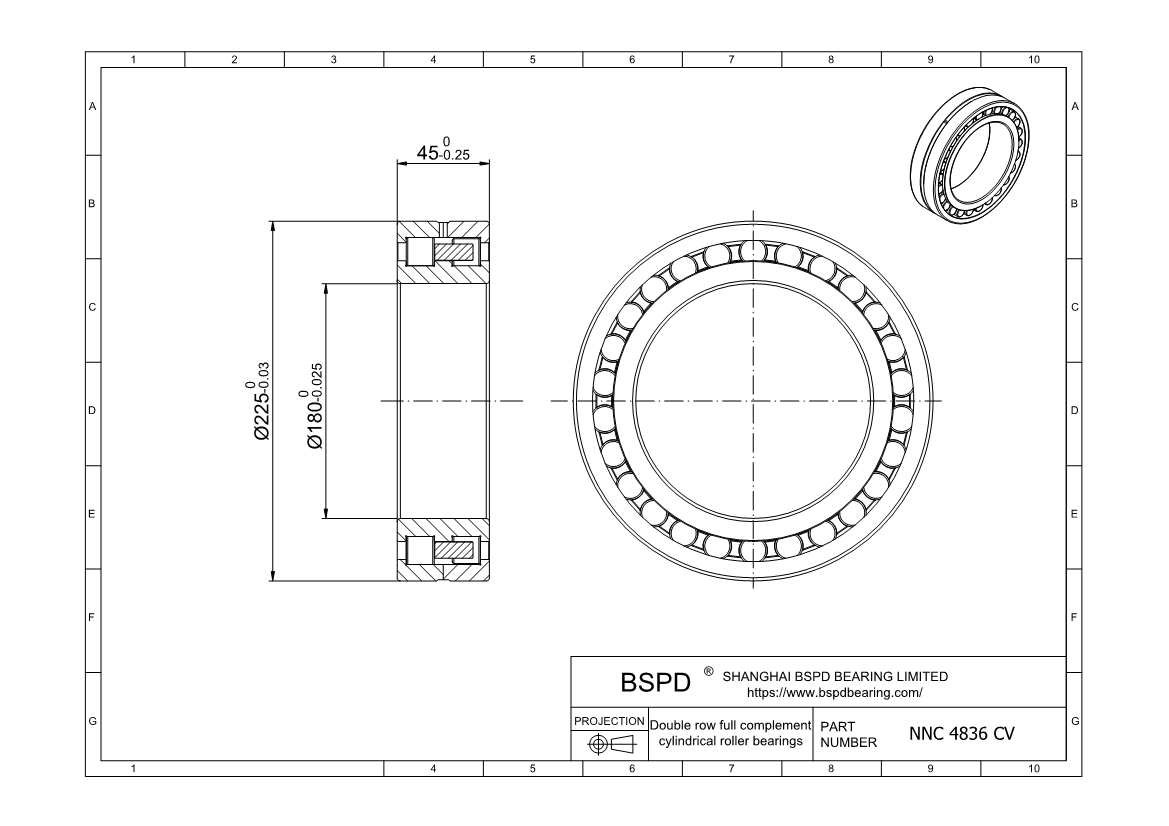

NNC 4836 CV Double row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 180 mm； Outer Diameter: 225 mm； Width (Thickness): 45 mm;

REQUEST FOR QUOTE

Product Attributes

Product Number	NNC 4836 CV
Bore diameter	180 mm
Outside diameter	225 mm
Width	45 mm
Basic dynamic load rating	297 kN
Basic static load rating	695 kN
Fatigue load limit	69.5 kN
Reference speed	1200 r/min
Limiting speed	1500 r/min
Mass	4.3 kg
Shoulder diameter of inner ring	200 mm
Shoulder diameter of outer ring	209 mm

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings

What are the types of cylindrical roller bearing NNC 4836 CV ? Double row full complement cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
