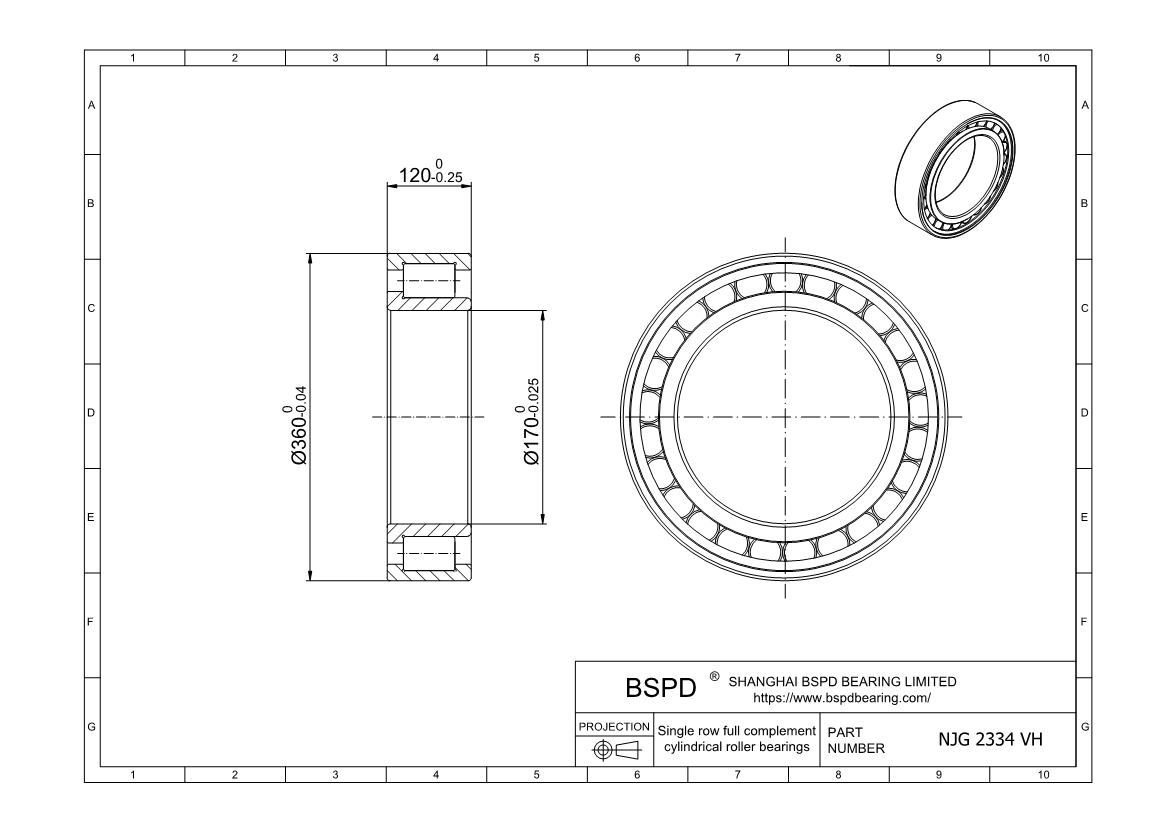

NJG 2334 VH
High-capacity cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 170 mm； Outer Diameter: 360 mm； Width (Thickness): 120 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NJG 2334 VH |
| Bore diameter | 170 mm |
| Outside diameter | 360 mm |
| Width | 120 mm |
| Basic dynamic load rating | 1760 kN |
| Basic static load rating | 2 450 kN |
| Fatigue load limit | 236 kN |
| Reference speed | 700 r/min |
| Limiting speed | 900 r/min |
| Mass | 59.5 kg |
| Shoulder diameter of inner ring | 227 mm |
| Shoulder diameter of outer ring | 291 mm |
| Raceway diameter | 203.55 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NJG 2334 VH ? High-capacity cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
