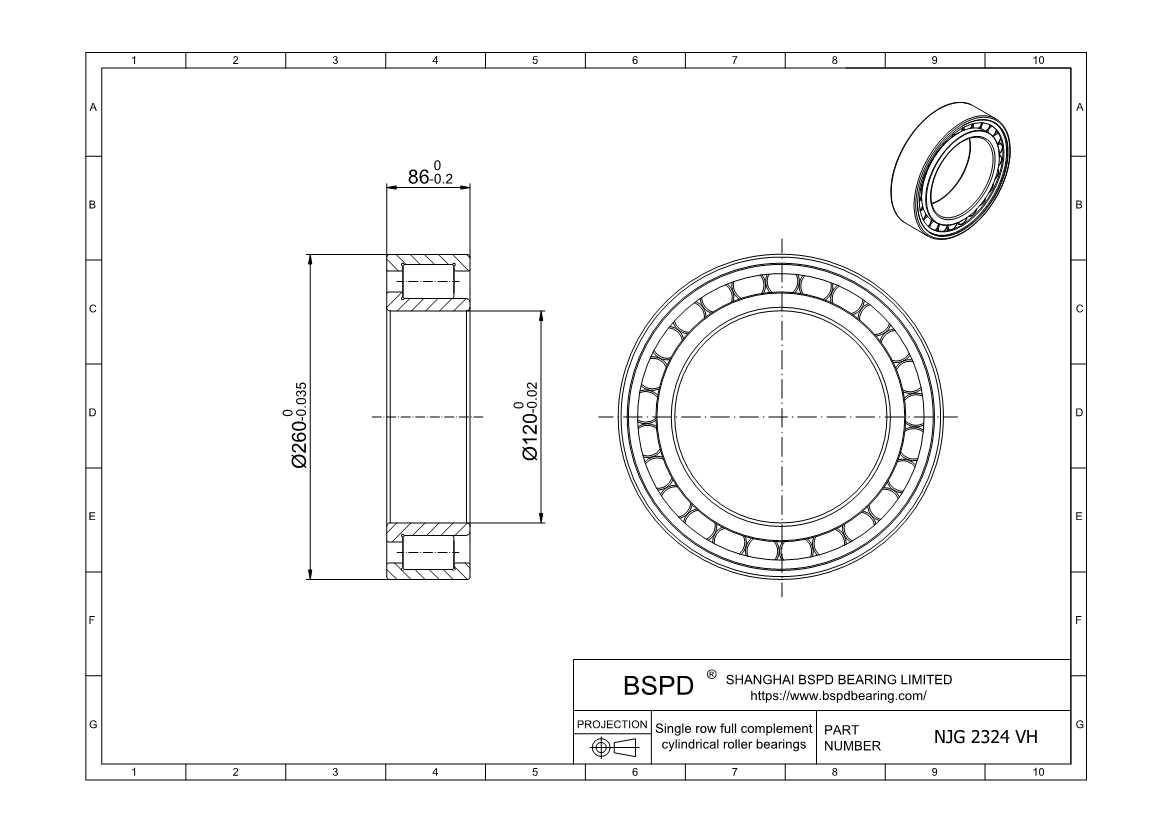

NJG 2324 VH
High-capacity cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 120 mm； Outer Diameter: 260 mm； Width (Thickness): 86 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NJG 2324 VH |
| Bore diameter | 120 mm |
| Outside diameter | 260 mm |
| Width | 86 mm |
| Basic dynamic load rating | 952 kN |
| Basic static load rating | 1250 kN |
| Fatigue load limit | 140 kN |
| Reference speed | 1000 r/min |
| Limiting speed | 1200 r/min |
| Mass | 22.5 kg |
| Shoulder diameter of inner ring | 164 mm |
| Shoulder diameter of outer ring | 213 mm |
| Raceway diameter | 147.39 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NJG 2324 VH ? High-capacity cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
