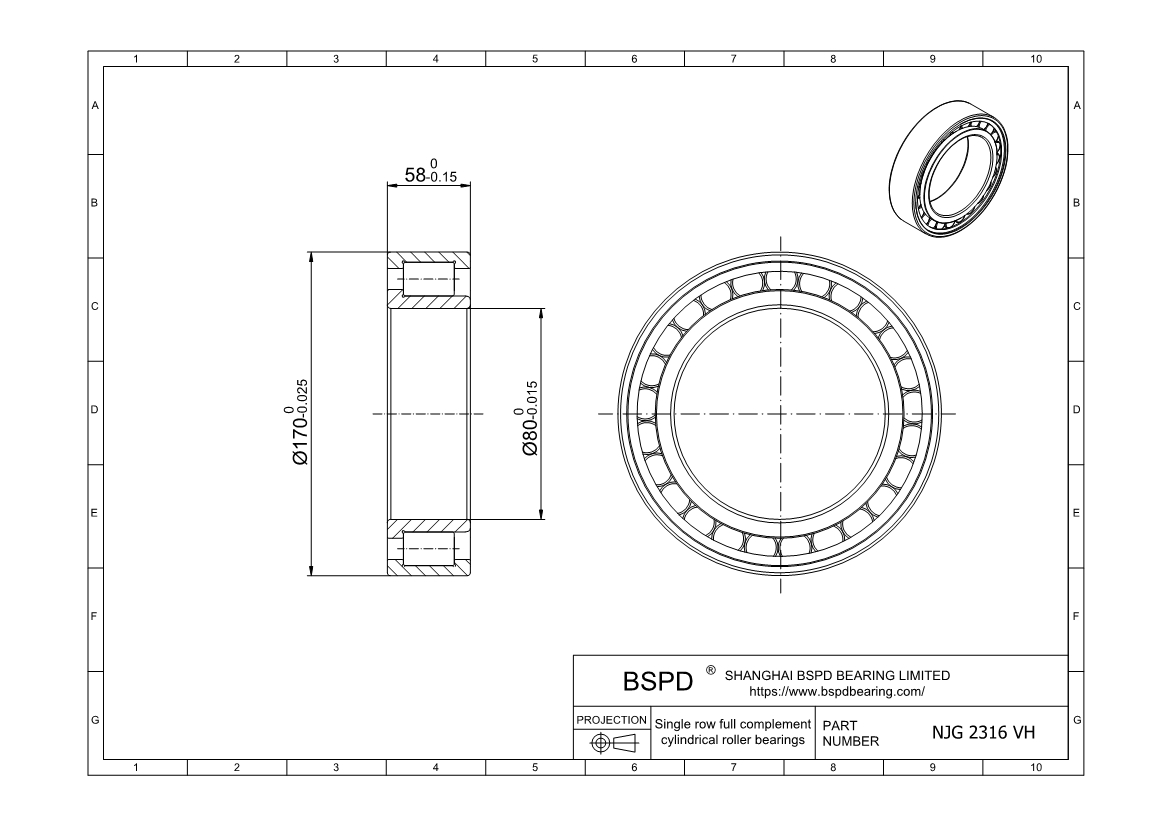

NJG 2316 VH
High-capacity cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 80 mm； Outer Diameter: 170 mm； Width (Thickness): 58 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NJG 2316 VH |
| Bore diameter | 80 mm |
| Outside diameter | 170 mm |
| Width | 58 mm |
| Basic dynamic load rating | 457 kN |
| Basic static load rating | 570 kN |
| Fatigue load limit | 71 kN |
| Reference speed | 1500 r/min |
| Limiting speed | 1900 r/min |
| Mass | 6.4 kg |
| Shoulder diameter of inner ring | 109 mm |
| Shoulder diameter of outer ring | 141 mm |
| Raceway diameter | 98.3 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NJG 2316 VH ? High-capacity cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
