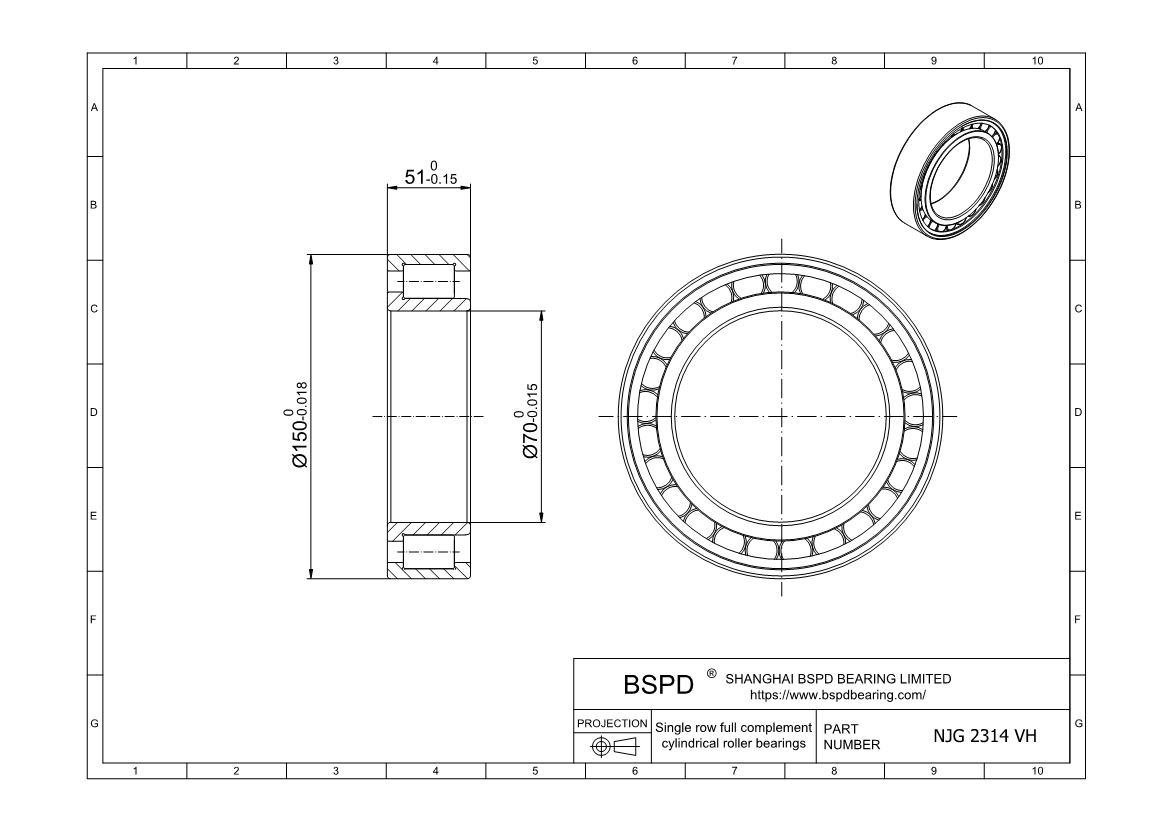

NJG 2314 VH
High-capacity cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 70 mm； Outer Diameter: 150 mm； Width (Thickness): 51 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NJG 2314 VH |
| Bore diameter | 70 mm |
| Outside diameter | 150 mm |
| Width | 51 mm |
| Basic dynamic load rating | 336 kN |
| Basic static load rating | 400 kN |
| Fatigue load limit | 50 kN |
| Reference speed | 1800 r/min |
| Limiting speed | 2200 r/min |
| Mass | 4.4 kg |
| Shoulder diameter of inner ring | 93.8 mm |
| Shoulder diameter of outer ring | 121 mm |
| Raceway diameter | 84.2 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NJG 2314 VH ? High-capacity cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
