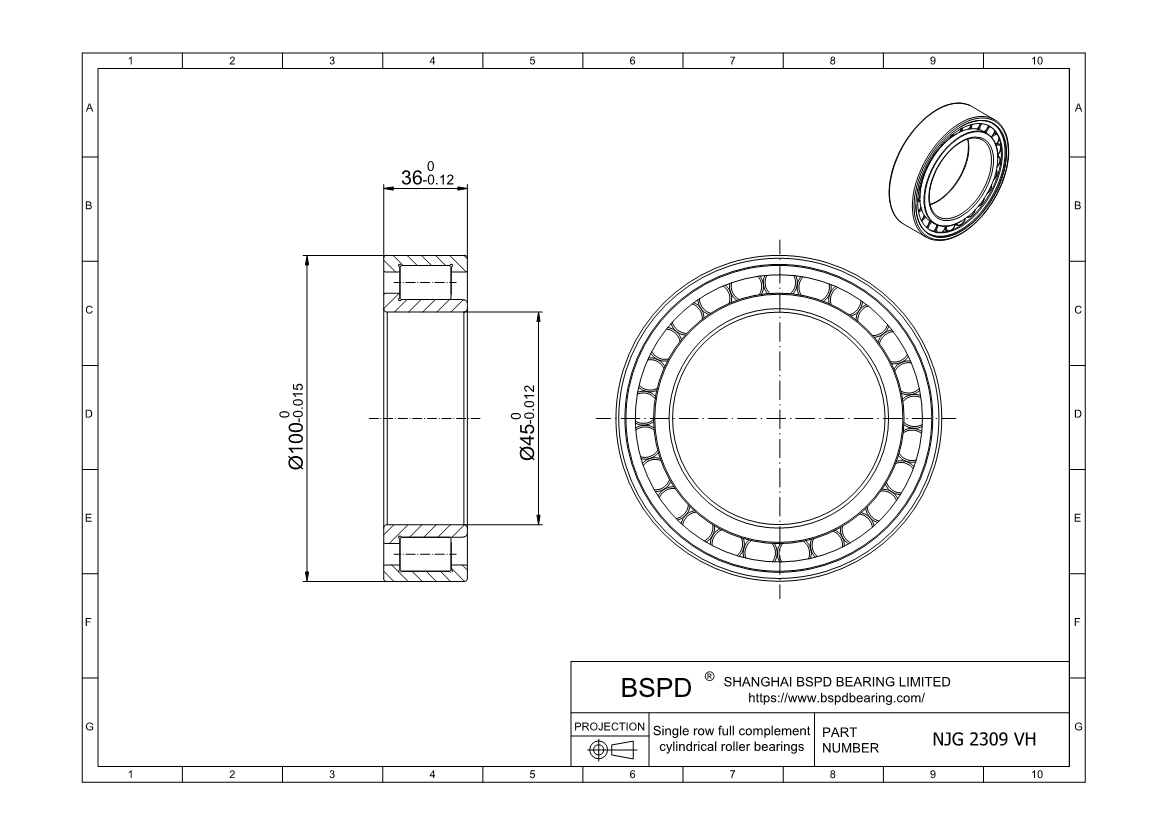

NJG 2309 VH High-capacity cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 45 mm； Outer Diameter: 100 mm； Width (Thickness): 36 mm;

REQUEST FOR QUOTE

Product Attributes

Product Number	NJG 2309 VH
Bore diameter	45 mm
Outside diameter	100 mm
Width	36 mm
Basic dynamic load rating	172 kN
Basic static load rating	196 kN
Fatigue load limit	25.5 kN
Reference speed	2800 r/min
Limiting speed	3400 r/min
Mass	1.4 kg
Shoulder diameter of inner ring	62.5 mm
Shoulder diameter of outer ring	80.1 mm
Raceway diameter	56.14 mm

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings

What are the types of cylindrical roller bearing NJG 2309 VH ? High-capacity cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
