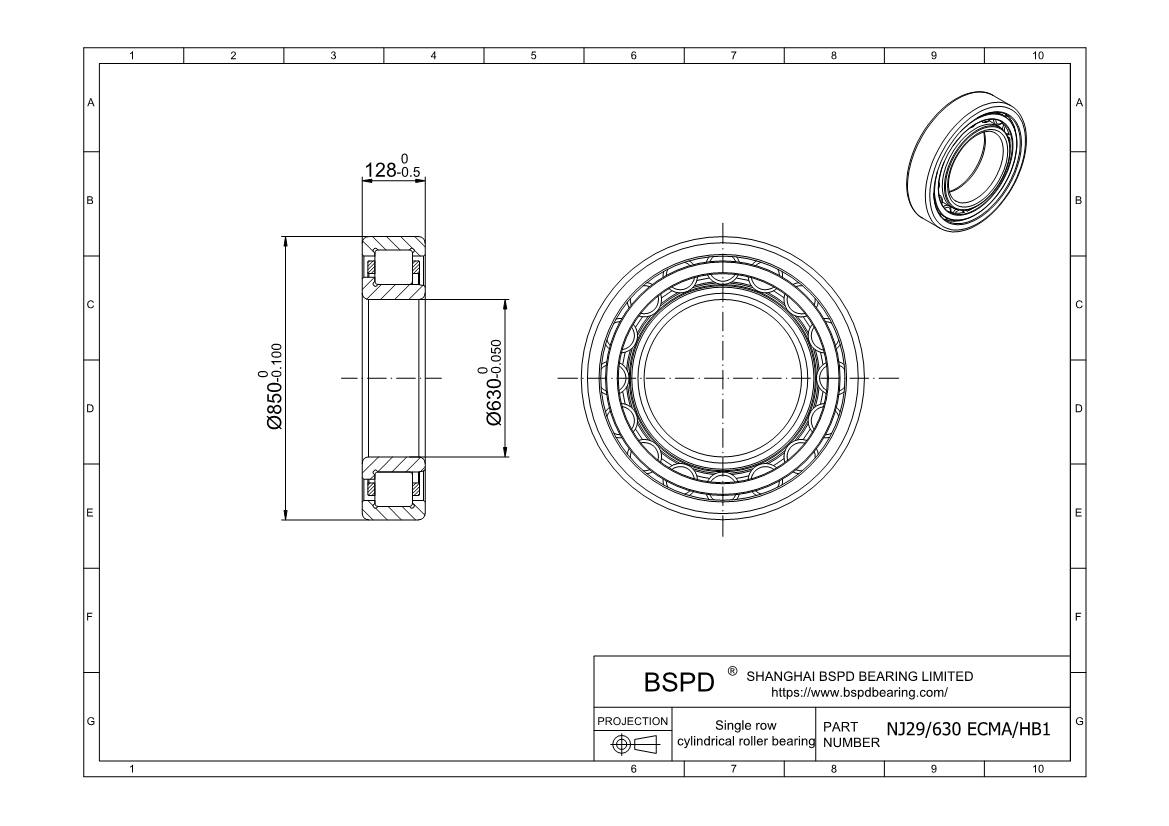

NJ29/630 ECMA/HB1
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 630 mm； Outer Diameter: 850 mm； Width (Thickness): 128 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NJ29/630 ECMA/HB1 |
| Bore diameter | 630 mm |
| Outside diameter | 850 mm |
| Width | 128 mm |
| Basic dynamic load rating | 3300 kN |
| Basic static load rating | 7200 kN |
| Fatigue load limit | 510 kN |
| Reference speed | 700 r/min |
| Limiting speed | 900 r/min |
| Mass | 230 kg |
| Shoulder diameter of inner ring | 703 mm |
| Shoulder diameter of outer ring | 782 mm |
| Raceway diameter | 683 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NJ29/630 ECMA/HB1 ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
