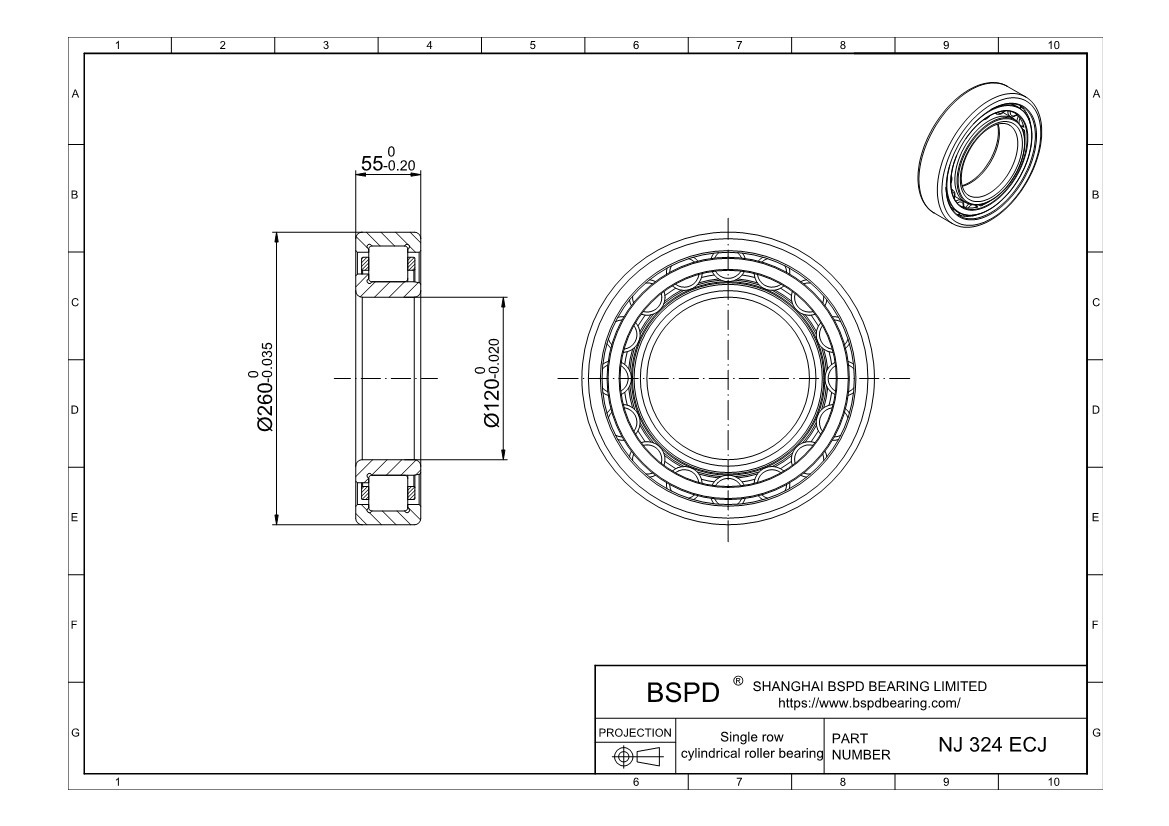

NJ 324 ECJ
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 120 mm； Outer Diameter: 260 mm； Width (Thickness): 55 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NJ 324 ECJ |
| Bore diameter | 120 mm |
| Outside diameter | 260 mm |
| Width | 55 mm |
| Basic dynamic load rating | 610 kN |
| Basic static load rating | 620 kN |
| Fatigue load limit | 69.5 kN |
| Reference speed | 2800 r/min |
| Limiting speed | 3200 r/min |
| Mass | 13.5 kg |
| Shoulder diameter of inner ring | 168 mm |
| Shoulder diameter of outer ring | 217.8 mm |
| Raceway diameter | 154 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NJ 324 ECJ ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
