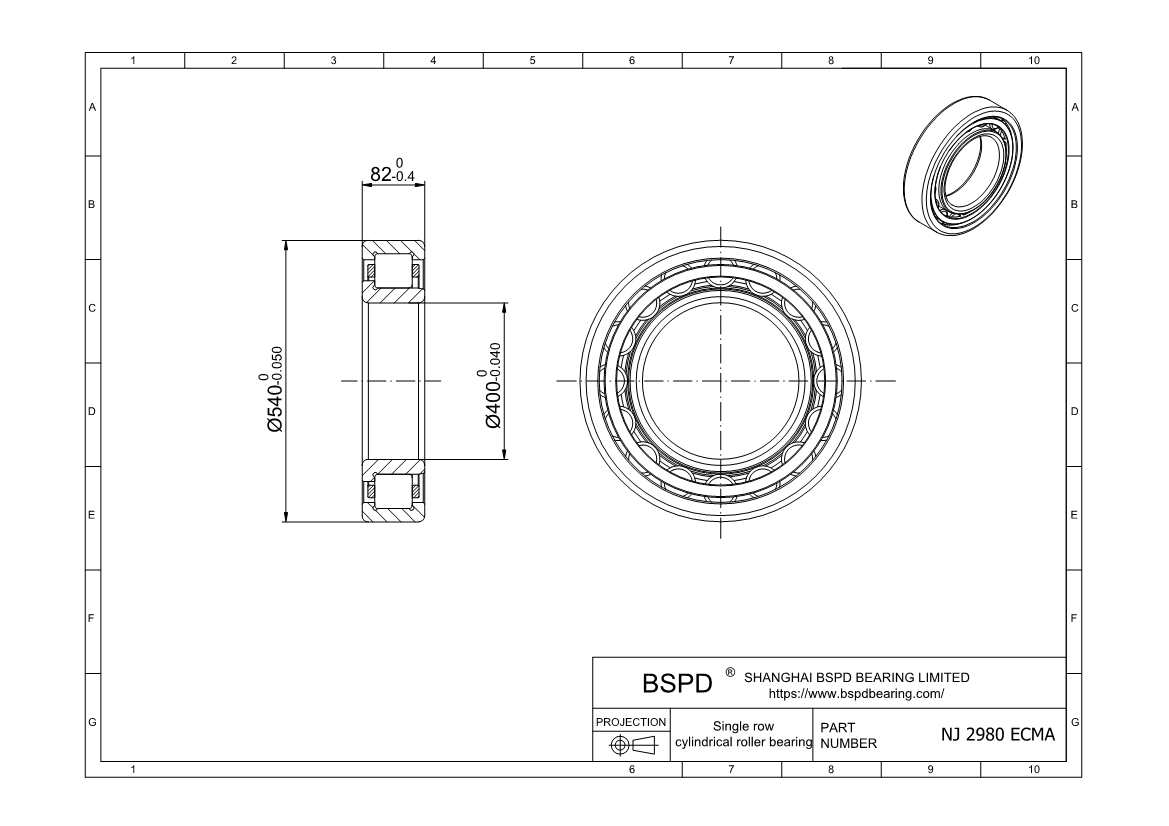

NJ 2980 ECMA
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 400 mm； Outer Diameter: 540 mm； Width (Thickness): 82 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NJ 2980 ECMA |
| Bore diameter | 400 mm |
| Outside diameter | 540 mm |
| Width | 82 mm |
| Basic dynamic load rating | 1380 kN |
| Basic static load rating | 2800 kN |
| Fatigue load limit | 245 kN |
| Reference speed | 1200 r/min |
| Limiting speed | 1600 r/min |
| Mass | 57 kg |
| Shoulder diameter of inner ring | 448 mm |
| Shoulder diameter of outer ring | 495 mm |
| Raceway diameter | 435 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NJ 2980 ECMA ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
