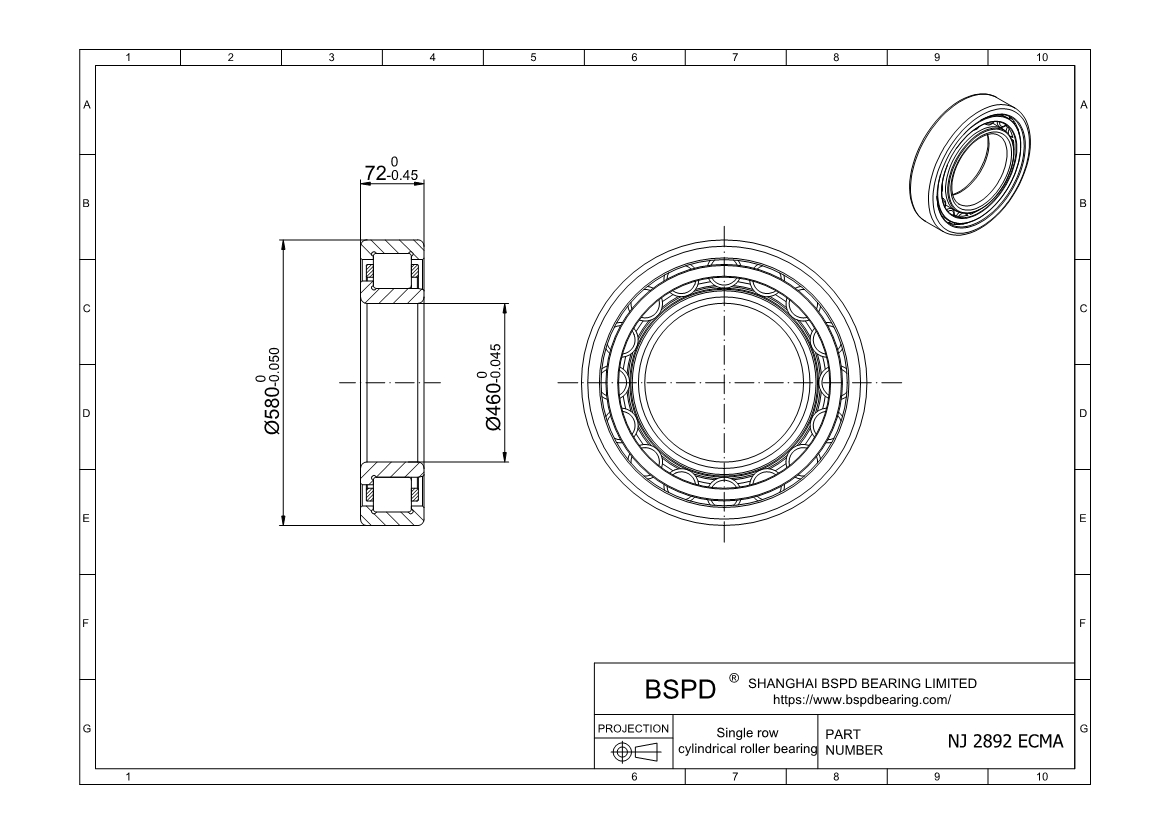

NJ 2892 ECMA
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 460 mm； Outer Diameter: 580 mm； Width (Thickness): 72 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NJ 2892 ECMA |
| Bore diameter | 460 mm |
| Outside diameter | 580 mm |
| Width | 72 mm |
| Basic dynamic load rating | 1080 kN |
| Basic static load rating | 2400 kN |
| Fatigue load limit | 193 kN |
| Reference speed | 1100 r/min |
| Limiting speed | 1400 r/min |
| Mass | 48 kg |
| Shoulder diameter of inner ring | 499 mm |
| Shoulder diameter of outer ring | 543 mm |
| Raceway diameter | 489 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NJ 2892 ECMA ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
