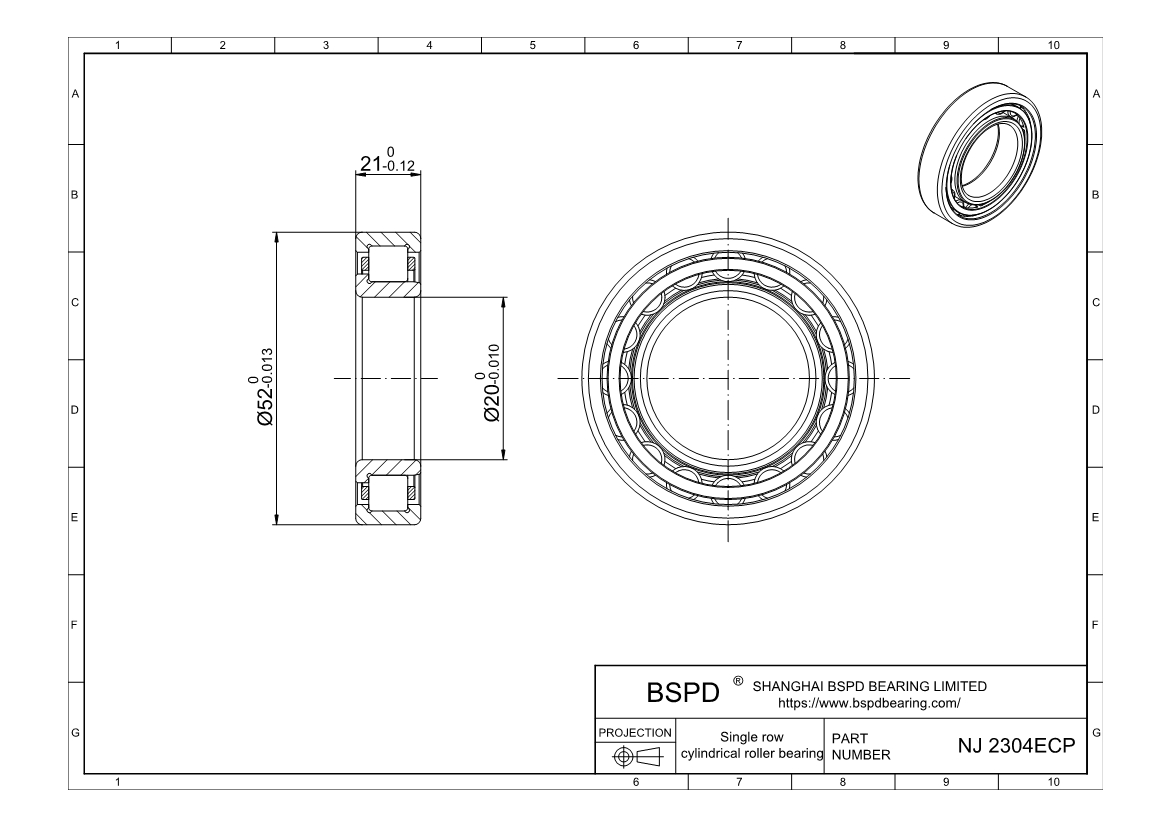

NJ 2304 ECP
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 20 mm； Outer Diameter: 52 mm； Width (Thickness): 21 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NJ 2304 ECP |
| Bore diameter | 20 mm |
| Outside diameter | 52 mm |
| Width | 21 mm |
| Basic dynamic load rating | 47.5 kN |
| Basic static load rating | 38 kN |
| Fatigue load limit | 4.8 kN |
| Reference speed | 15000 r/min |
| Limiting speed | 18000 r/min |
| Mass | 0.22 kg |
| Shoulder diameter of inner ring | 31.2 mm |
| Shoulder diameter of outer ring | 41.85 mm |
| Raceway diameter | 27.5 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NJ 2304 ECP ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
