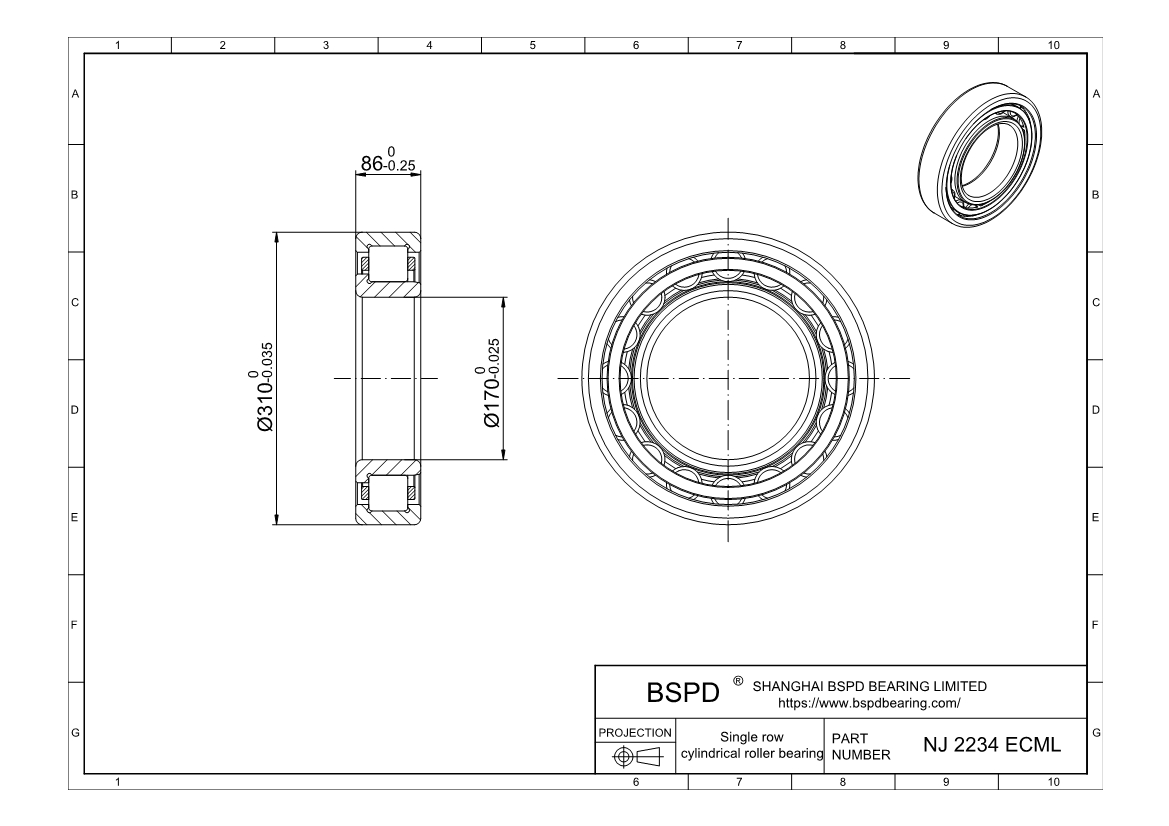

NJ 2234 ECML
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 170 mm； Outer Diameter: 310 mm； Width (Thickness): 86 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NJ 2234 ECML |
| Bore diameter | 170 mm |
| Outside diameter | 310 mm |
| Width | 86 mm |
| Basic dynamic load rating | 1060 kN |
| Basic static load rating | 1340 kN |
| Fatigue load limit | 140 kN |
| Reference speed | 2200 r/min |
| Limiting speed | 3800 r/min |
| Mass | 29 kg |
| Shoulder diameter of inner ring | 220 mm |
| Shoulder diameter of outer ring | 269.9 mm |
| Raceway diameter | 205 mm |
Print PDF
Request a 3D CAD Model
