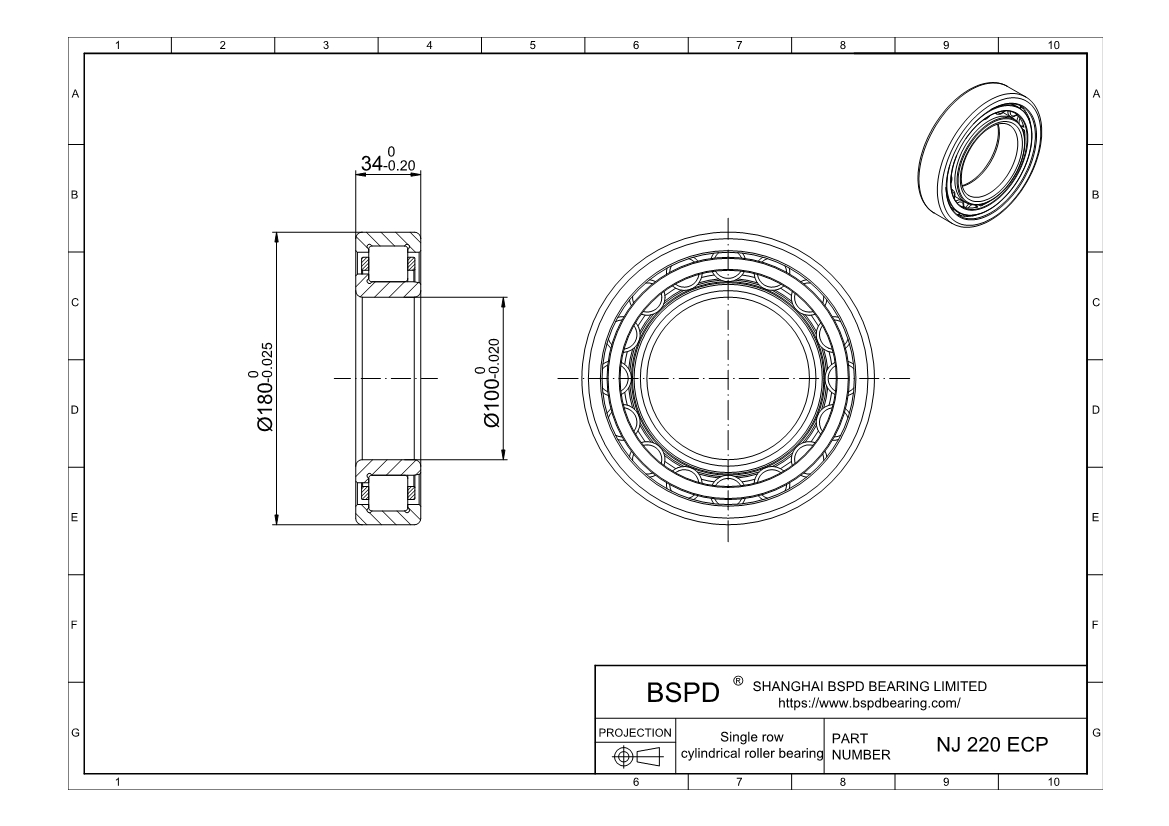

NJ 220 ECP
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 100 mm； Outer Diameter: 180 mm； Width (Thickness): 34 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NJ 220 ECP |
| Bore diameter | 100 mm |
| Outside diameter | 180 mm |
| Width | 34 mm |
| Basic dynamic load rating | 285 kN |
| Basic static load rating | 305 kN |
| Fatigue load limit | 36.5 kN |
| Reference speed | 4000 r/min |
| Limiting speed | 4500 r/min |
| Mass | 3.45 kg |
| Shoulder diameter of inner ring | 127 mm |
| Shoulder diameter of outer ring | 155.6 mm |
| Raceway diameter | 119 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NJ 220 ECP ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
