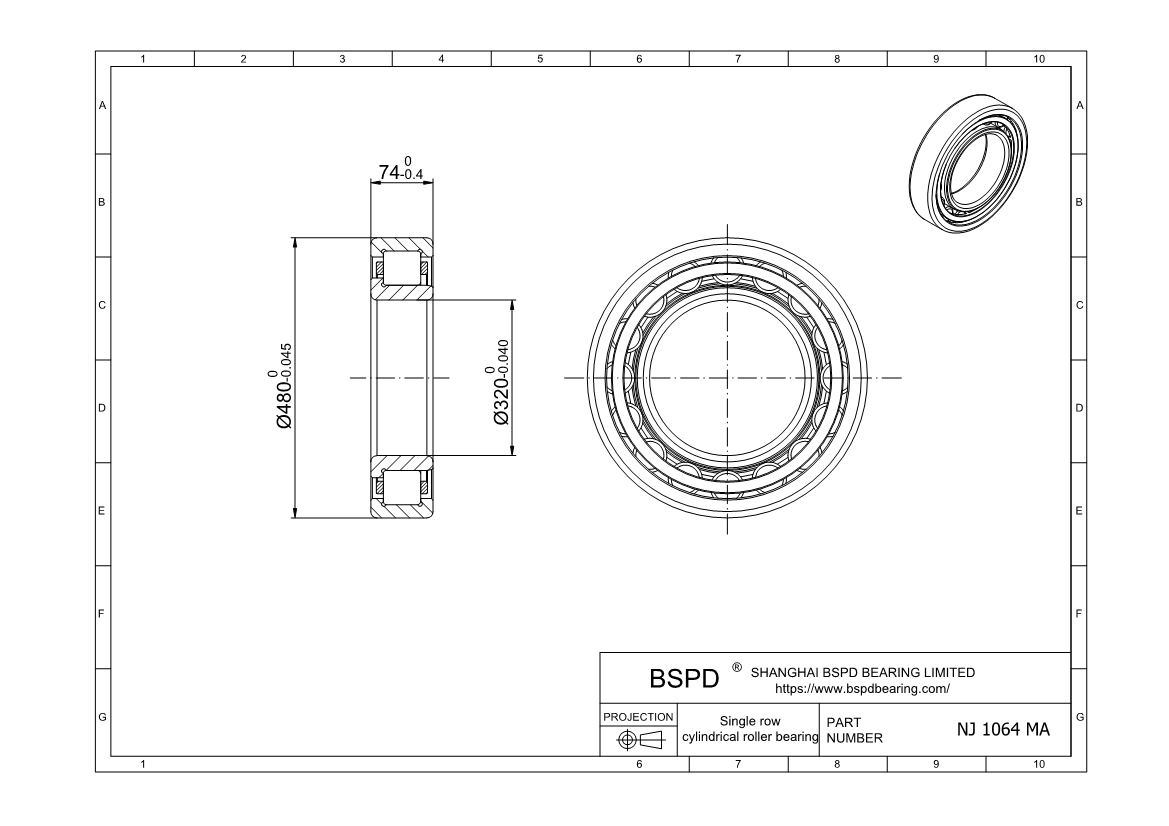

NJ 1064 MA
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 320 mm； Outer Diameter: 480 mm； Width (Thickness): 74 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NJ 1064 MA |
| Bore diameter | 320 mm |
| Outside diameter | 480 mm |
| Width | 74 mm |
| Basic dynamic load rating | 880 kN |
| Basic static load rating | 1430 kN |
| Fatigue load limit | 132 kN |
| Reference speed | 1400 r/min |
| Limiting speed | 1400 r/min |
| Mass | 48 kg |
| Shoulder diameter of inner ring | 376 mm |
| Shoulder diameter of outer ring | 422 mm |
| Raceway diameter | 360 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NJ 1064 MA ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
