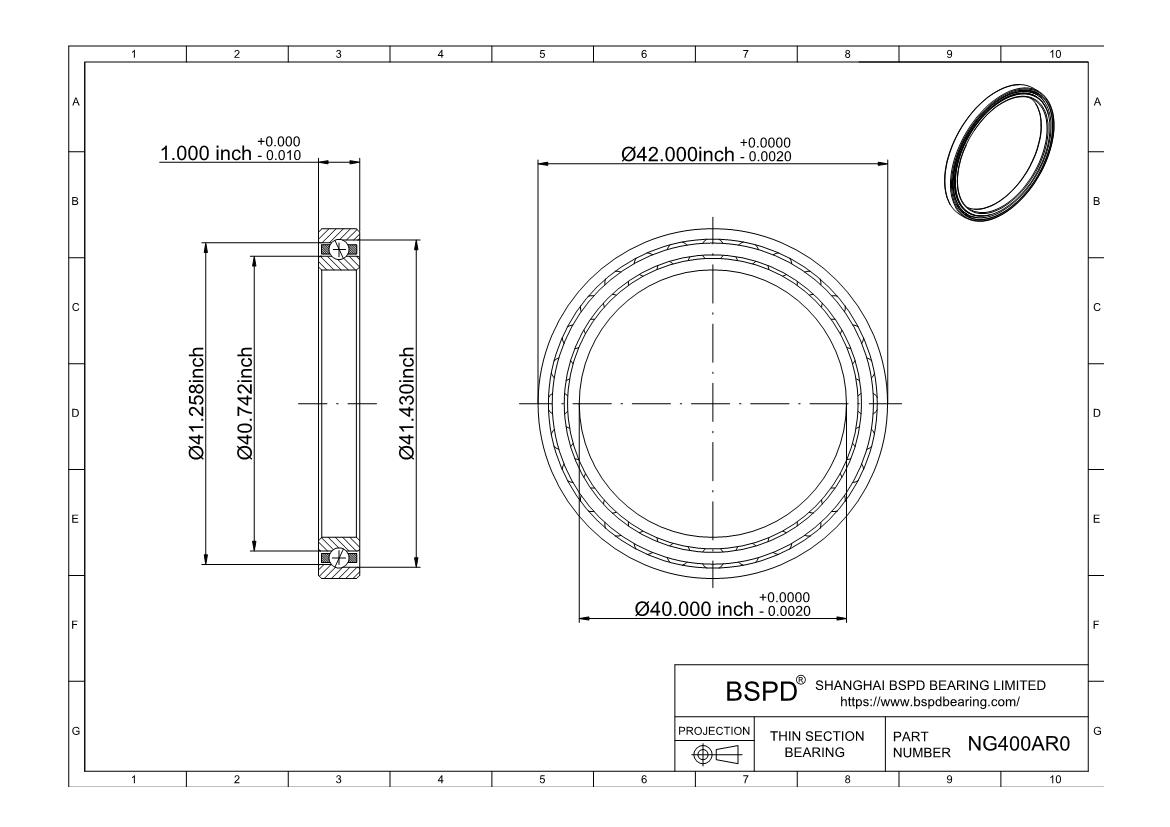

NG400AR0
Endura-kote Plated Bearings
Dimensions: Bore (Inner) Diameter: 39.9998"； Outer Diameter: 42.0003"； Width (Thickness): 1?;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball | |
| For Load Direction | Angular | |
| Construction | Single Row | |
| Contact Angle | 30° | |
| Seal Type | Open | |
| Surface | Chromium Plating | |
| Cross Section | 1" x 1" | |
| Part Number | NG400AR0 | |
| For Shaft Diameter | 39.9998" | |
| Bore Dia (d) | 39.9998" | |
| Bore Dia Tolerance | -0.0020"– 0" | |
| For Housing ID | 42.0003" | |
| Outer Dia (D) | 42.0003" | |
| Outer Dia Tolerance | -0.0020"– 0" | |
| Width (B) | 1" | |
| Width Tolerance | +.000 –.010" | |
| Land dia.L1 | 40.742" | |
| Land dia.L2 | 41.258" | |
| C'Bore dia.L3 | 41.430" | |
| Ring Material | 52100 Chrome steel | |
| Ball Material | 52100 Chrome steel | |
| Cage Material | Brass | |
| Dynamic radial (lbs) | 19153 | |
| Static (lbs) | Thrust | 55440 |
| Radial | 77720 | |
| Thrust | 224400 | |
| Lubrication | Lubricated | |
| Shaft Mount Type | Press Fit | |
| Temperature Range | -30° to 110 °C | |
| ABEC Rating | ABEC-1 | |
| Radial Clearance | 0.0000 – 0.0005" | |
| RoHS | Compliant | |
| Weight (lbs) | 29.800 | |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Thin Section Bearings NG400AR0 ? Endura-kote Plated Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
