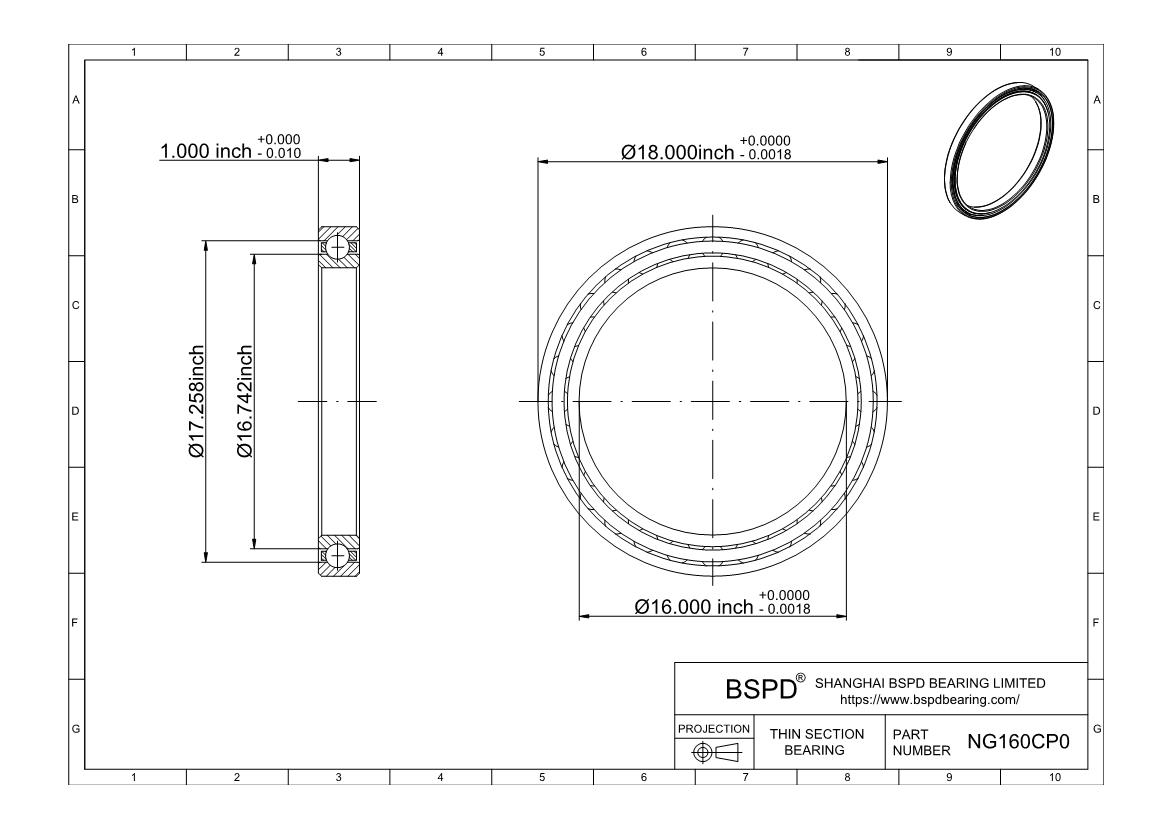

NG160CP0
Endura-kote Plated Bearings
Dimensions: Bore (Inner) Diameter: 15.9998"； Outer Diameter: 18.0003"； Width (Thickness): 1?;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Open |
| Surface | Chromium Plating |
| Cross Section | 1" x 1" |
| Part Number | NG160CP0 |
| For Shaft Diameter | 15.9998" |
| Bore Dia (d) | 15.9998" |
| Bore Dia Tolerance | -0.0018"– 0" |
| For Housing ID | 18.0003" |
| Outer Dia (D) | 18.0003" |
| Outer Dia Tolerance | -0.0018"– 0" |
| Width (B) | 1" |
| Width Tolerance | +.000 –.010" |
| Land dia.L1 | 16.742" |
| Land dia.L2 | 17.258" |
| Ring Material | 52100 Chrome steel |
| Ball Material | 52100 Chrome steel |
| Cage Material | Brass |
| Dynamic radial (lbs) | 11648 |
| Static radial (lbs) | 27910 |
| Lubrication | Lubricated |
| Shaft Mount Type | Press Fit |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance | 0.0000 – 0.0005" |
| RoHS | Compliant |
| Weight (lbs) | 12.300 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Thin Section Bearings NG160CP0 ? Endura-kote Plated Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
