NG140XP0
Endura-kote Plated Bearings

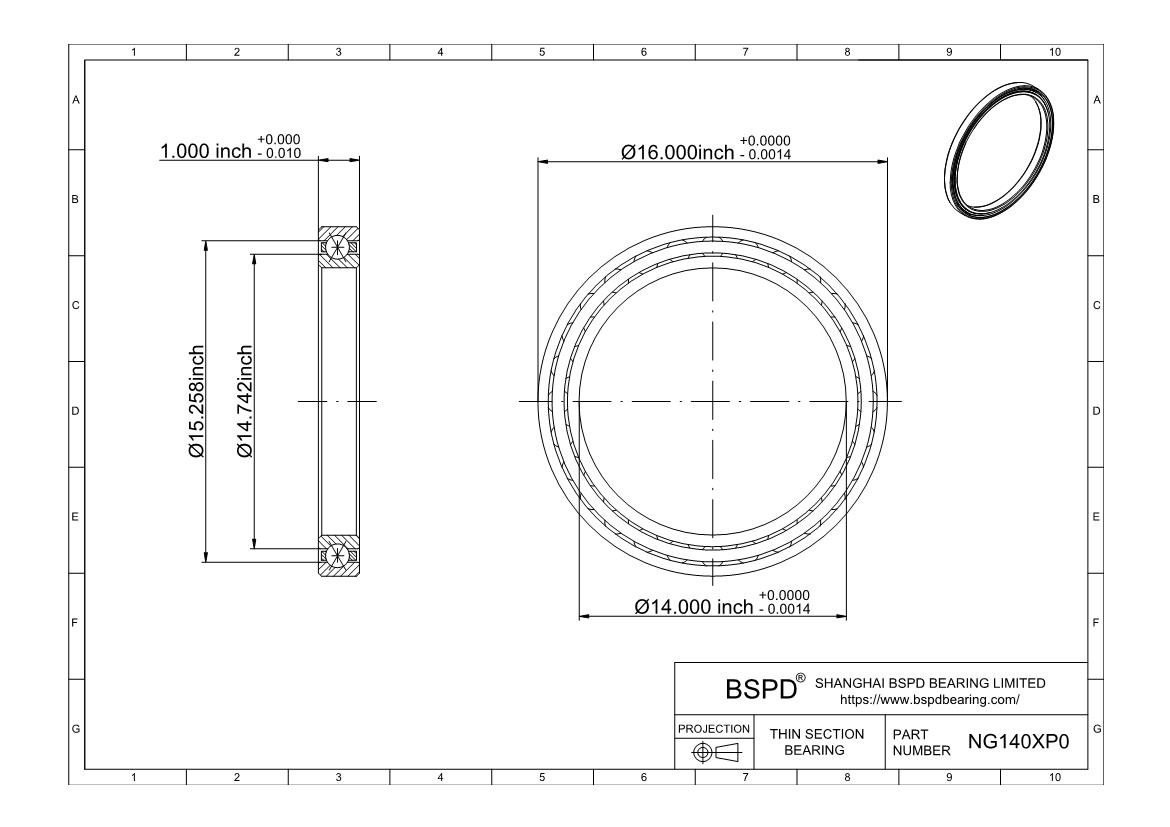

Dimensions: Bore (Inner) Diameter: 13.9998"； Outer Diameter: 16.0003"； Width (Thickness): 1?;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball | |
| For Load Direction | Four Point | |
| Construction | Single Row | |
| Seal Type | Open | |
| Surface | Chromium Plating | |
| Cross Section | 1" x 1" | |
| Part Number | NG140XP0 | |
| For Shaft Diameter | 13.9998" | |
| Bore Dia (d) | 13.9998" | |
| Bore Dia Tolerance | -0.0014"– 0" | |
| For Housing ID | 16.0003" | |
| Outer Dia (D) | 16.0003" | |
| Outer Dia Tolerance | -0.0014"– 0" | |
| Width (B) | 1" | |
| Width Tolerance | +.000 –.010" | |
| Land dia.L1 | 14.742" | |
| Land dia.L2 | 15.258" | |
| Ring Material | 52100 Chrome steel | |
| Ball Material | 52100 Chrome steel | |
| Cage Material | Brass | |
| Dynamic (lbs) | Radial | 14,404 |
| Thrust | 23,410 | |
| Moment | 81,056 | |
| Static (lbs) | Radial | 24,620 |
| Thrust | 61,560 | |
| Moment | 184,700 | |
| Lubrication | Lubricated | |
| Shaft Mount Type | Press Fit | |
| Temperature Range | -30° to 110 °C | |
| ABEC Rating | ABEC-1 | |
| Radial Clearance | 0.0000 – 0.0005" | |
| RoHS | Compliant | |
| Weight (lbs) | 10.800 | |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Thin Section Bearings NG140XP0 ? Endura-kote Plated Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
