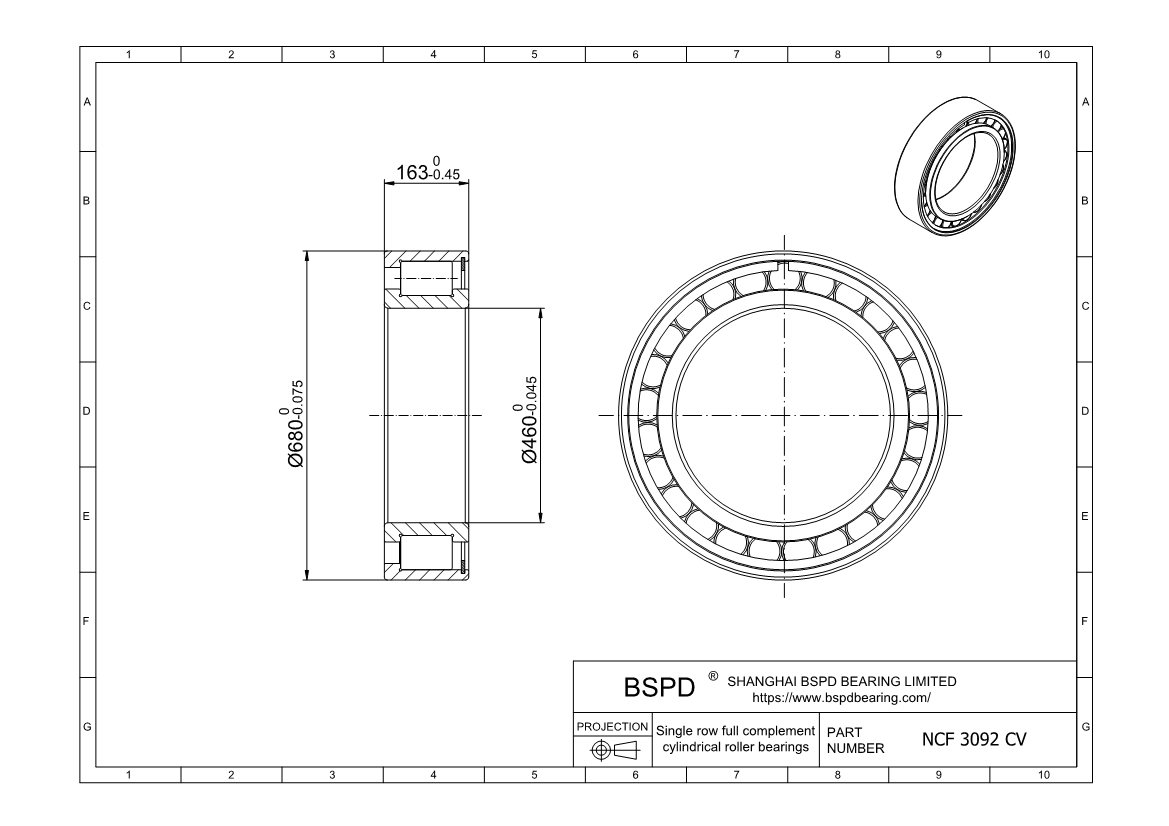

NCF 3092 CV
High-capacity cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 460 mm； Outer Diameter: 680 mm； Width (Thickness): 163 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NCF 3092 CV |
| Bore diameter | 460 mm |
| Outside diameter | 680 mm |
| Width | 163 mm |
| Basic dynamic load rating | 3690 kN |
| Basic static load rating | 6950 kN |
| Fatigue load limit | 540 kN |
| Reference speed | 380 r/min |
| Limiting speed | 480 r/min |
| Mass | 195 kg |
| Shoulder diameter of inner ring | 522 mm |
| Shoulder diameter of outer ring | 611 mm |
| Raceway diameter | 632.97 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NCF 3092 CV ? High-capacity cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
