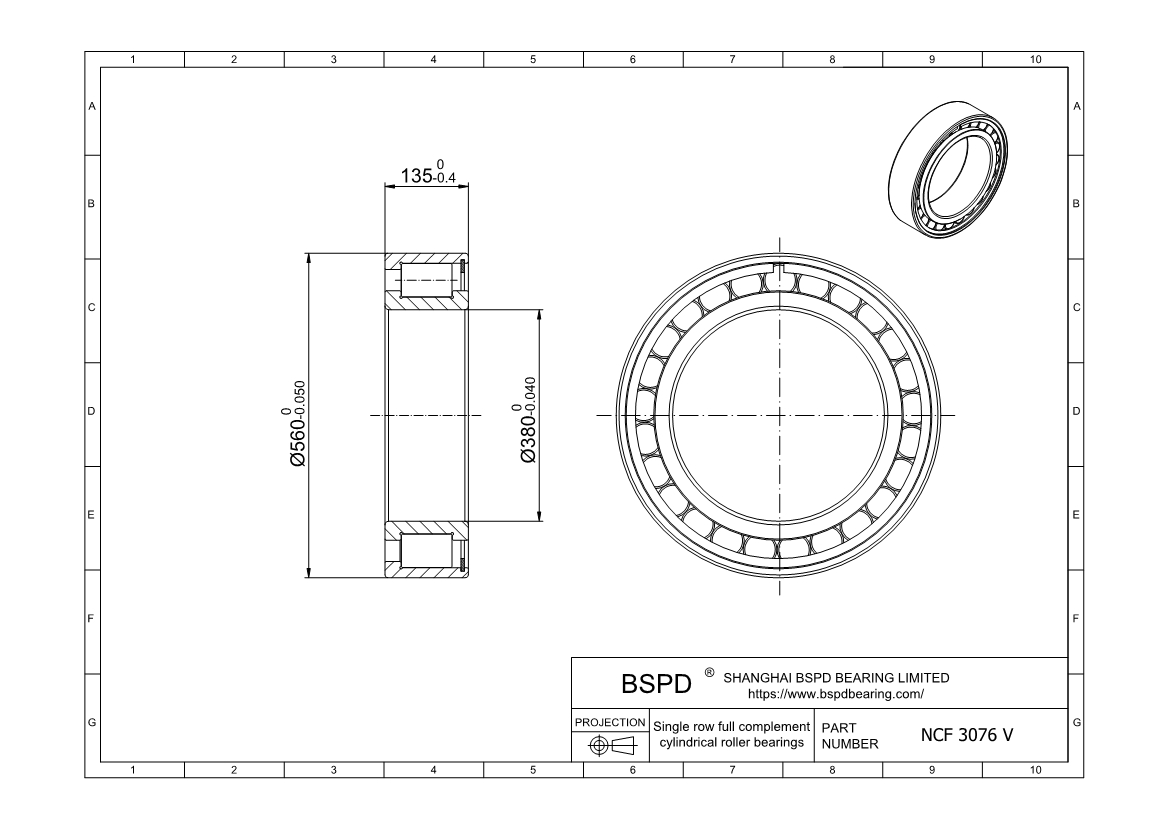

NCF 3076 V
High-capacity cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 380 mm； Outer Diameter: 560 mm； Width (Thickness): 135 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NCF 3076 V |
| Bore diameter | 380 mm |
| Outside diameter | 560 mm |
| Width | 135 mm |
| Basic dynamic load rating | 2700 kN |
| Basic static load rating | 5100 kN |
| Fatigue load limit | 425 kN |
| Reference speed | 480 r/min |
| Limiting speed | 600 r/min |
| Mass | 110 kg |
| Shoulder diameter of inner ring | 431 mm |
| Shoulder diameter of outer ring | 504 mm |
| Raceway diameter | 520.5 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NCF 3076 V ? High-capacity cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
