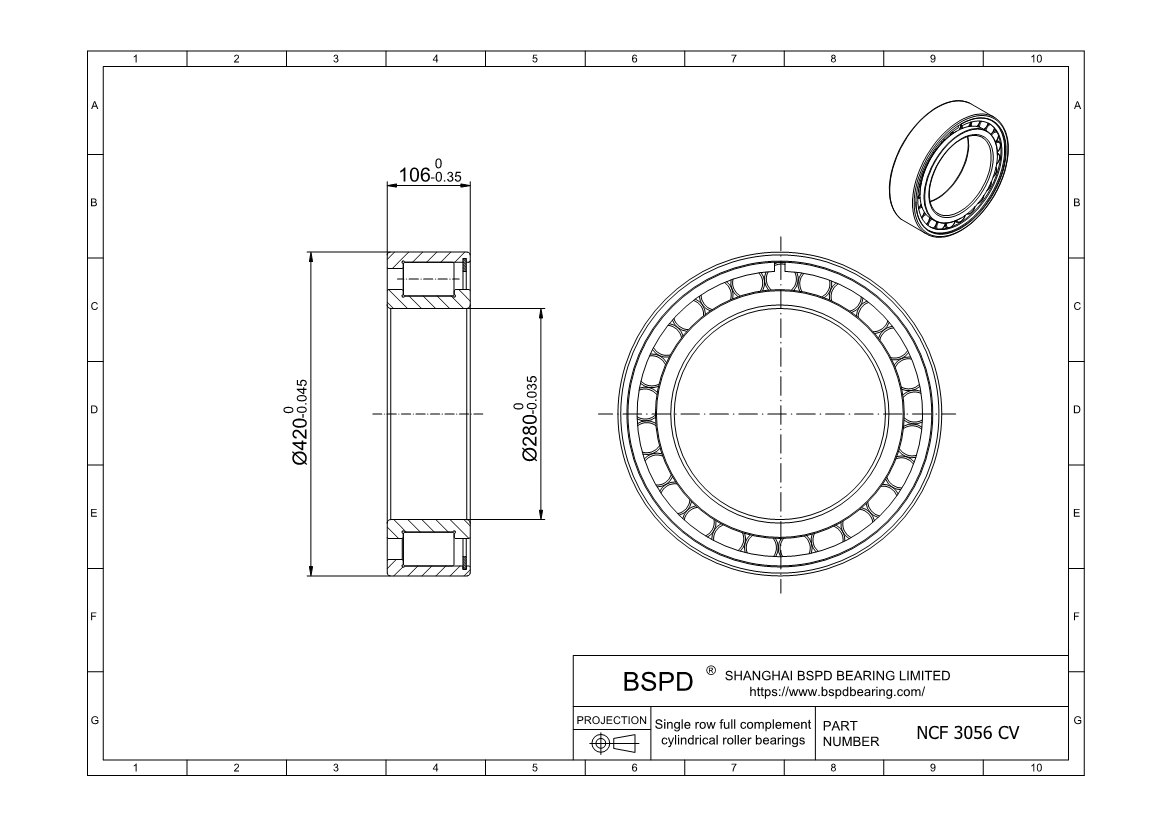

NCF 3056 CV
High-capacity cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 280 mm； Outer Diameter: 420 mm； Width (Thickness): 106 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NCF 3056 CV |
| Bore diameter | 280 mm |
| Outside diameter | 420 mm |
| Width | 106 mm |
| Basic dynamic load rating | 1570 kN |
| Basic static load rating | 2650 kN |
| Fatigue load limit | 260 kN |
| Reference speed | 670 r/min |
| Limiting speed | 850 r/min |
| Mass | 50 kg |
| Shoulder diameter of inner ring | 319 mm |
| Shoulder diameter of outer ring | 373 mm |
| Raceway diameter | 390.3 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NCF 3056 CV ? High-capacity cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
