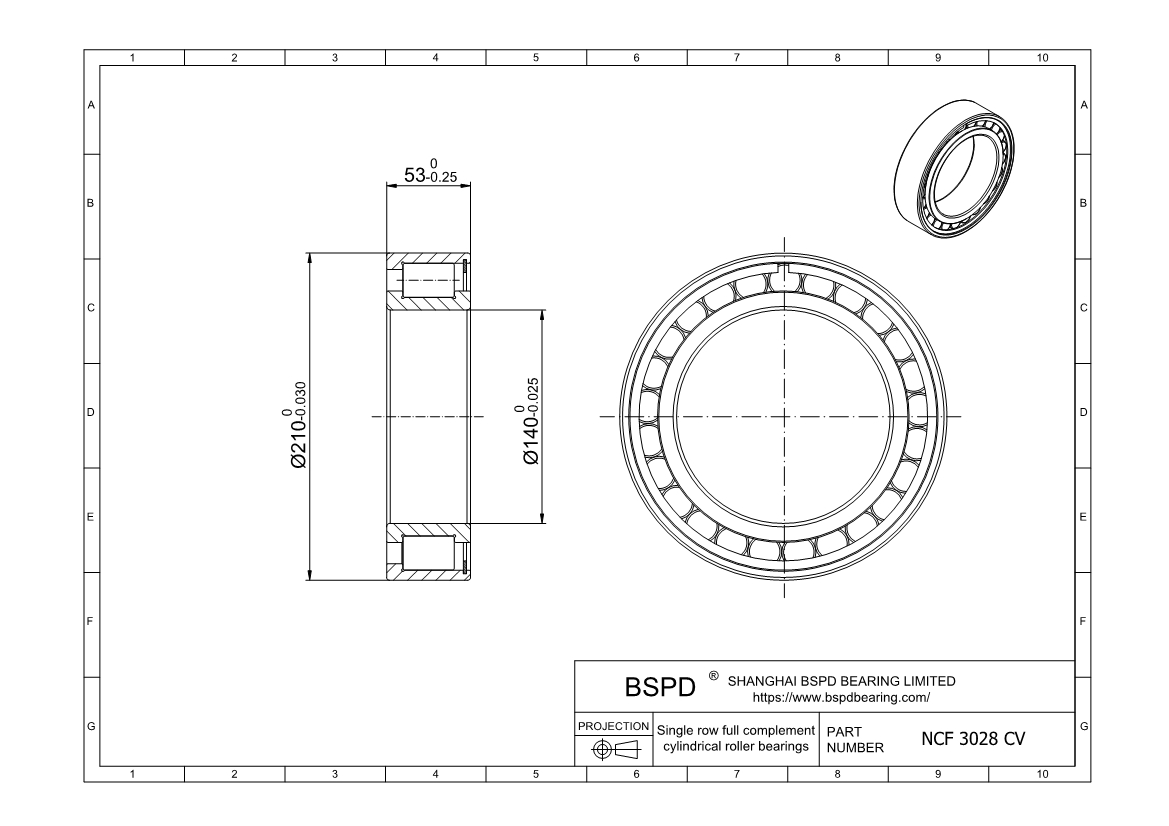

NCF 3028 CV High-capacity cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 140 mm； Outer Diameter: 210 mm； Width (Thickness): 53 mm;

REQUEST FOR QUOTE

Product Attributes

Product Number	NCF 3028 CV
Bore diameter	140 mm
Outside diameter	210 mm
Width	53 mm
Basic dynamic load rating	440 kN
Basic static load rating	680 kN
Fatigue load limit	78 kN
Reference speed	1400 r/min
Limiting speed	1800 r/min
Mass	6.1 kg
Shoulder diameter of inner ring	163 mm
Shoulder diameter of outer ring	189 mm
Raceway diameter	197.82 mm
