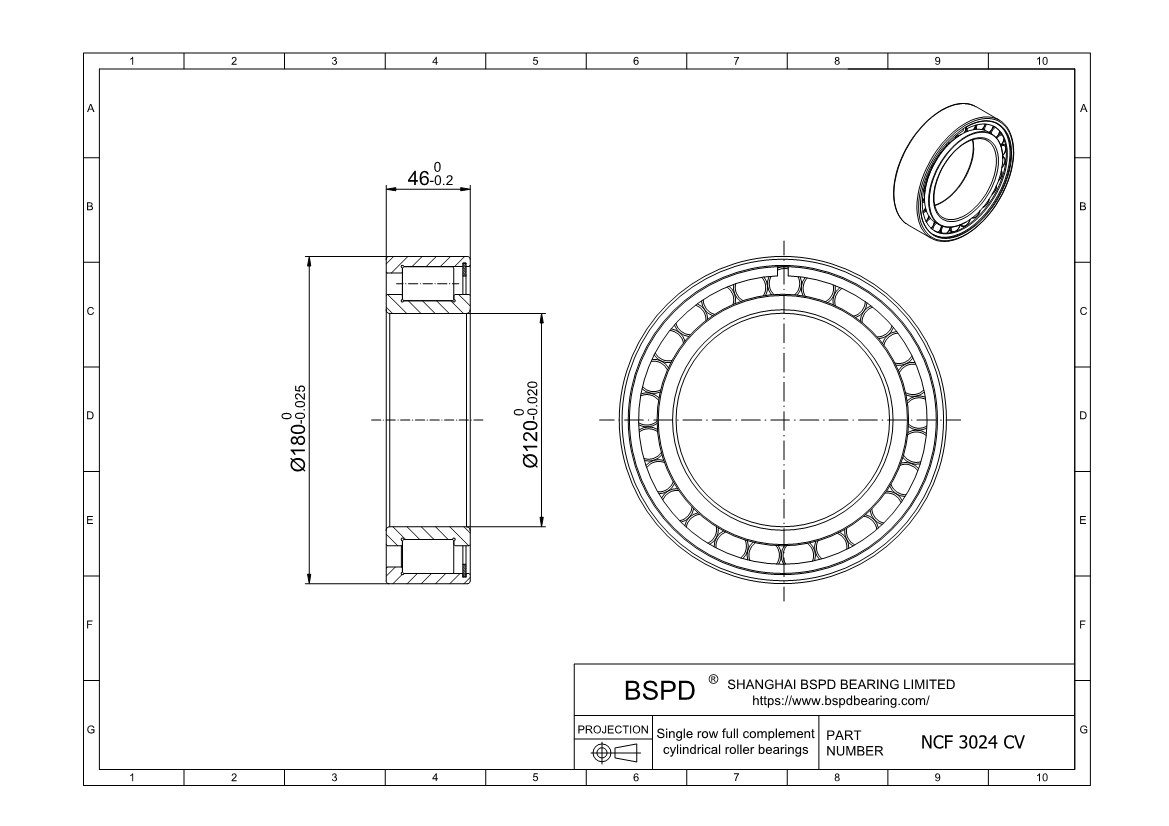

NCF 3024 CV
High-capacity cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 120 mm； Outer Diameter: 180 mm； Width (Thickness): 46 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NCF 3024 CV |
| Bore diameter | 120 mm |
| Outside diameter | 180 mm |
| Width | 46 mm |
| Basic dynamic load rating | 292 kN |
| Basic static load rating | 440 kN |
| Fatigue load limit | 52 kN |
| Reference speed | 1700 r/min |
| Limiting speed | 2000 r/min |
| Mass | 3.8 kg |
| Shoulder diameter of inner ring | 139 mm |
| Shoulder diameter of outer ring | 160 mm |
| Raceway diameter | 167.58 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NCF 3024 CV ? High-capacity cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
