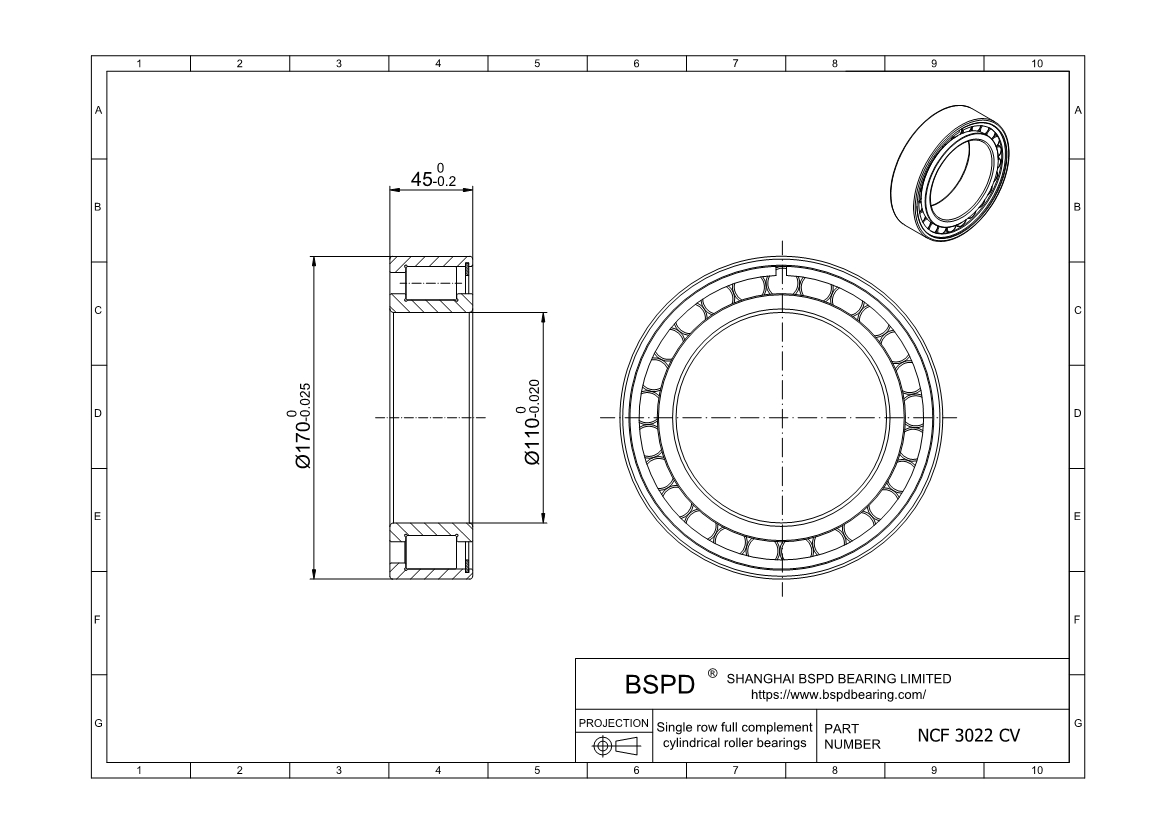

NCF 3022 CV
High-capacity cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 110 mm； Outer Diameter: 170 mm； Width (Thickness): 45 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NCF 3022 CV |
| Bore diameter | 110 mm |
| Outside diameter | 170 mm |
| Width | 45 mm |
| Basic dynamic load rating | 275 kN |
| Basic static load rating | 400 kN |
| Fatigue load limit | 48 kN |
| Reference speed | 3800 r/min |
| Limiting speed | 4500 r/min |
| Mass | 3.5 kg |
| Shoulder diameter of inner ring | 127 mm |
| Shoulder diameter of outer ring | 149 mm |
| Raceway diameter | 156.13 mm |
Print PDF
Request a 3D CAD Model
