NCF 3005 CV
High-capacity cylindrical roller bearings

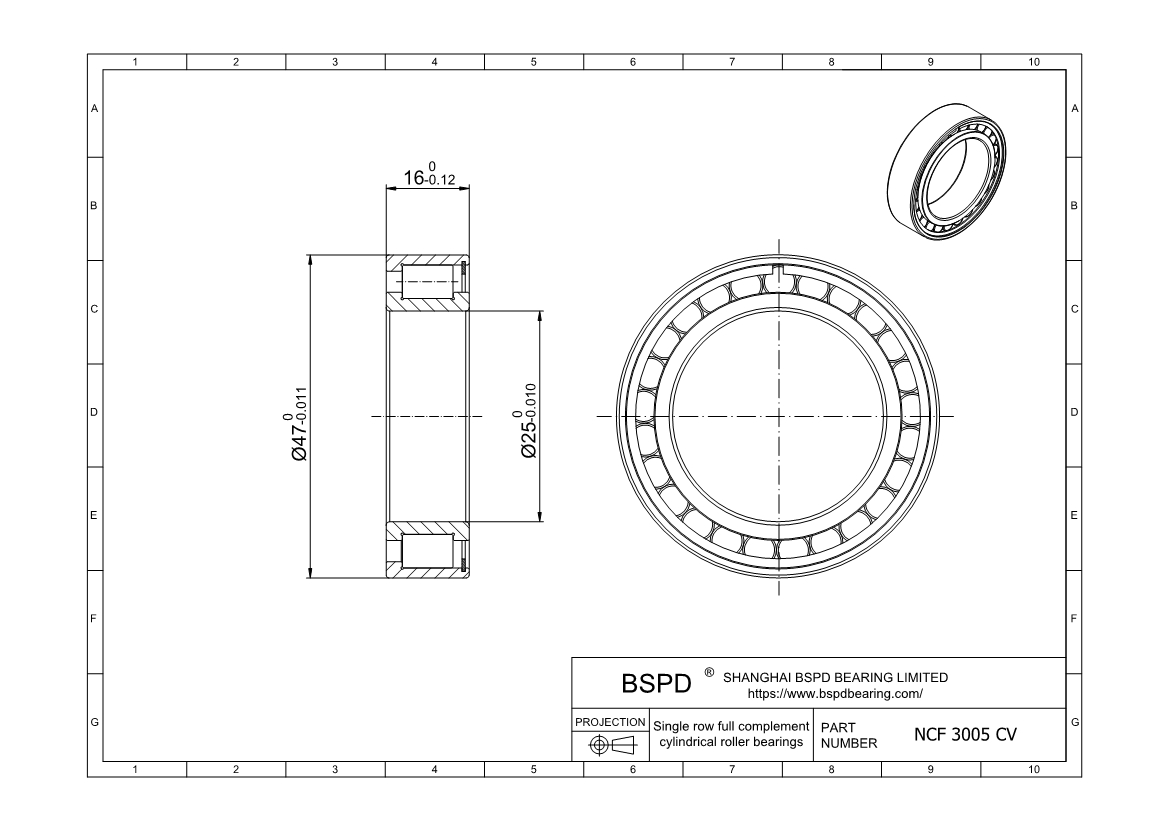

Dimensions: Bore (Inner) Diameter: 25 mm； Outer Diameter: 47 mm； Width (Thickness): 16 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NCF 3005 CV |
| Bore diameter | 25 mm |
| Outside diameter | 47 mm |
| Width | 16 mm |
| Basic dynamic load rating | 31.9 kN |
| Basic static load rating | 35.5 kN |
| Fatigue load limit | 3.8 kN |
| Reference speed | 7000 r/min |
| Limiting speed | 9000 r/min |
| Mass | 0.12 kg |
| Shoulder diameter of inner ring | 34 mm |
| Shoulder diameter of outer ring | 39 mm |
| Raceway diameter | 42.51 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NCF 3005 CV ? High-capacity cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
