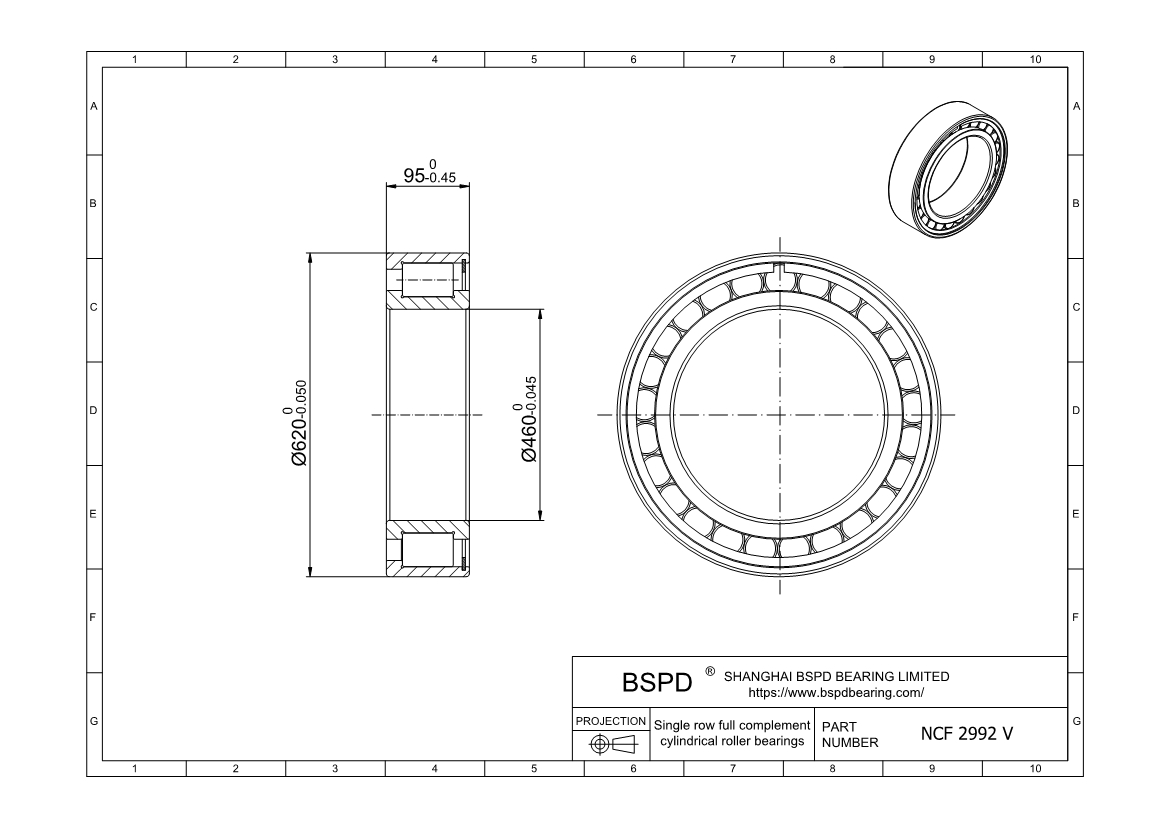

NCF 2992 V
High-capacity cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 460 mm； Outer Diameter: 620 mm； Width (Thickness): 95 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NCF 2992 V |
| Bore diameter | 460 mm |
| Outside diameter | 620 mm |
| Width | 95 mm |
| Basic dynamic load rating | 2050 kN |
| Basic static load rating | 4500 kN |
| Fatigue load limit | 390 kN |
| Reference speed | 400 r/min |
| Limiting speed | 500 r/min |
| Mass | 83 kg |
| Shoulder diameter of inner ring | 516 mm |
| Shoulder diameter of outer ring | 558 mm |
| Raceway diameter | 579 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NCF 2992 V ? High-capacity cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
