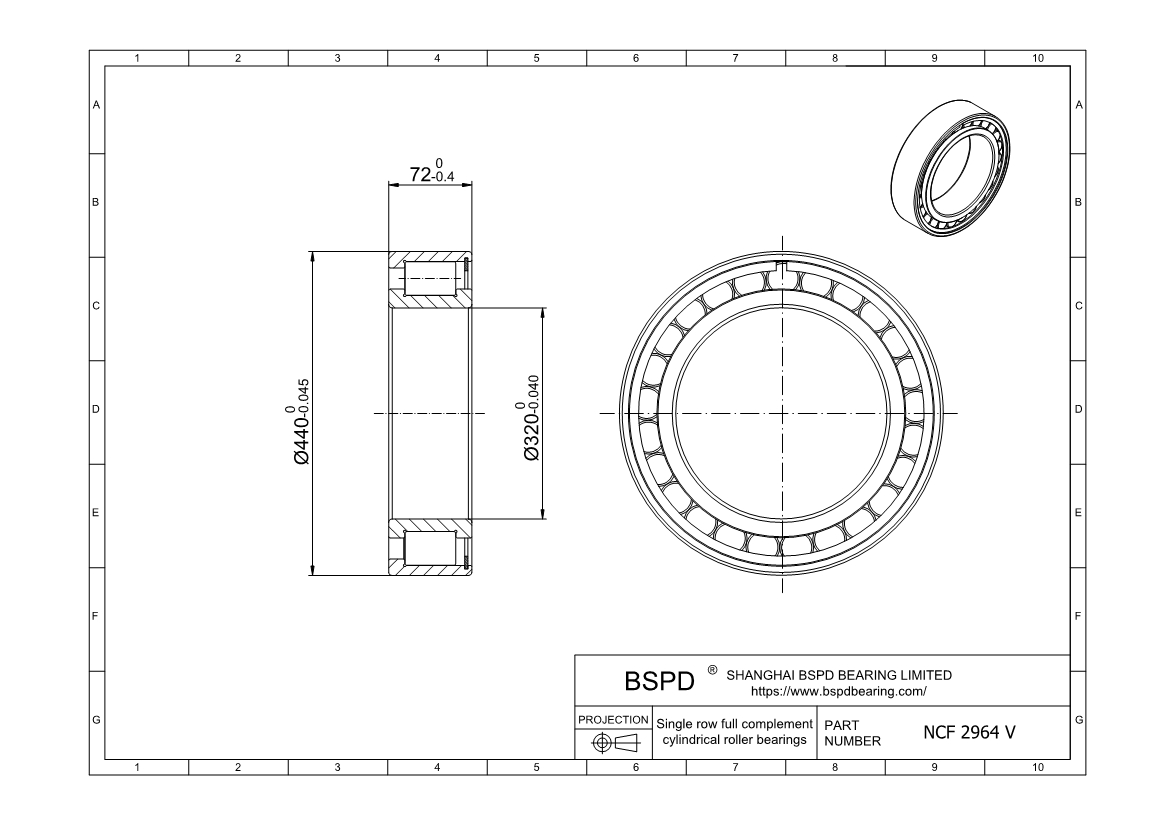

NCF 2964 V
High-capacity cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 320 mm； Outer Diameter: 440 mm； Width (Thickness): 72 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NCF 2964 V |
| Bore diameter | 320 mm |
| Outside diameter | 440 mm |
| Width | 72 mm |
| Basic dynamic load rating | 1140 kN |
| Basic static load rating | 2360 kN |
| Fatigue load limit | 220 kN |
| Reference speed | 600 r/min |
| Limiting speed | 750 r/min |
| Mass | 33 kg |
| Shoulder diameter of inner ring | 359 mm |
| Shoulder diameter of outer ring | 401 mm |
| Raceway diameter | 411 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NCF 2964 V ? High-capacity cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
