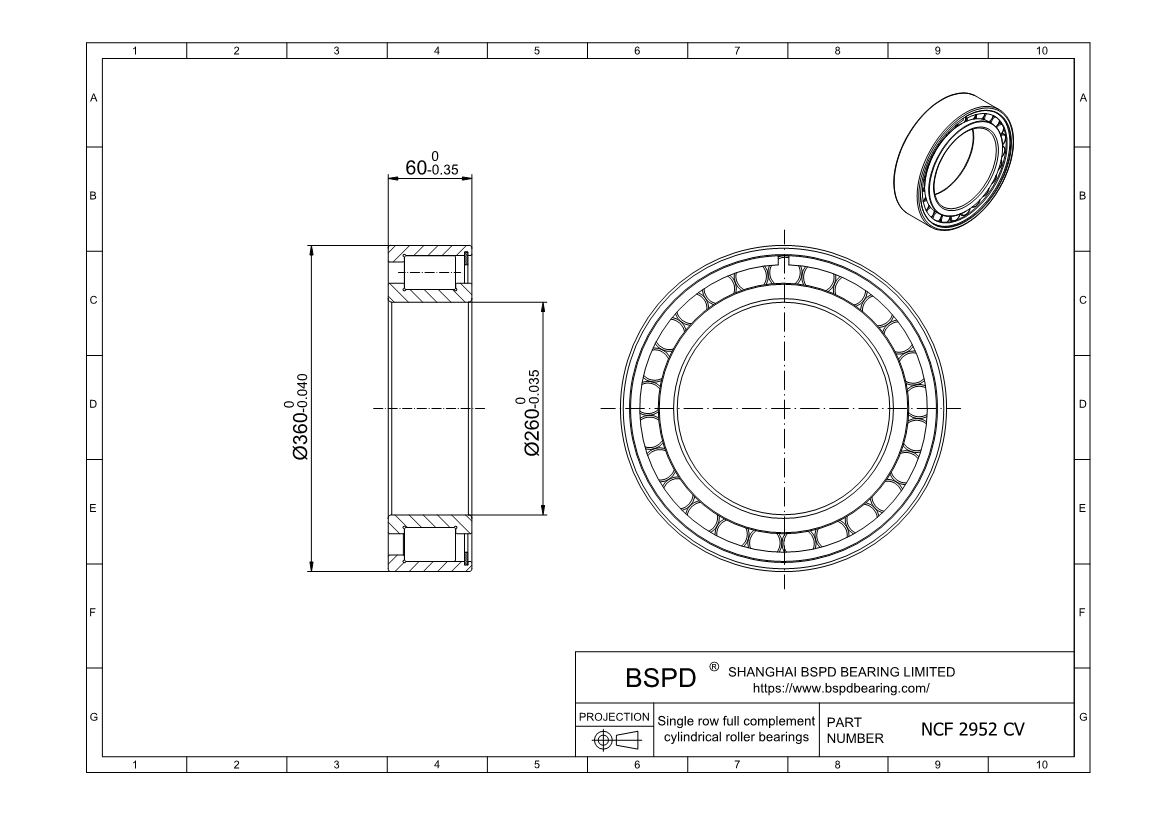

NCF 2952 CV
High-capacity cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 260 mm； Outer Diameter: 360 mm； Width (Thickness): 60 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NCF 2952 CV |
| Bore diameter | 260 mm |
| Outside diameter | 360 mm |
| Width | 60 mm |
| Basic dynamic load rating | 737 kN |
| Basic static load rating | 1430 kN |
| Fatigue load limit | 143 kN |
| Reference speed | 750 r/min |
| Limiting speed | 950 r/min |
| Mass | 18 kg |
| Shoulder diameter of inner ring | 291 mm |
| Shoulder diameter of outer ring | 323 mm |
| Raceway diameter | 333.7 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NCF 2952 CV ? High-capacity cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
