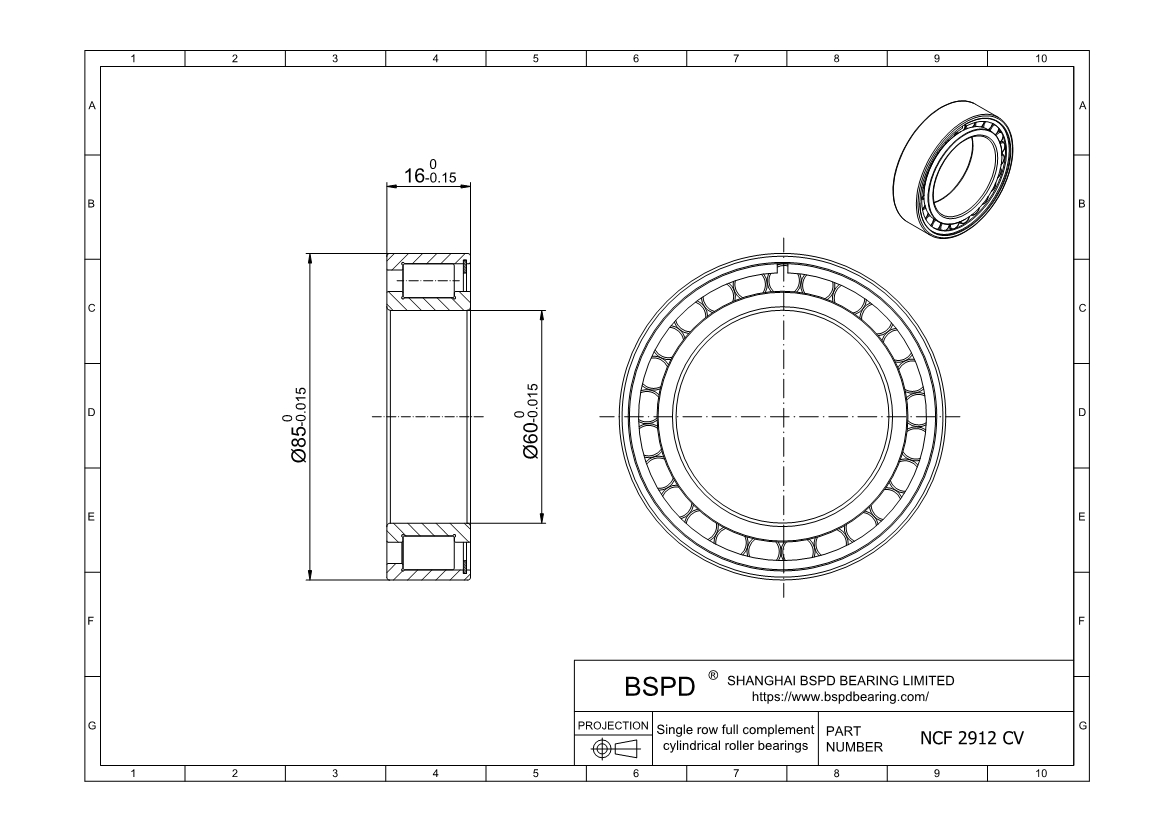

NCF 2912 CV High-capacity cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 60 mm； Outer Diameter: 85 mm； Width (Thickness): 16 mm;

REQUEST FOR QUOTE

Product Attributes

Product Number	NCF 2912 CV
Bore diameter	60 mm
Outside diameter	85 mm
Width	16 mm
Basic dynamic load rating	55 kN
Basic static load rating	80 kN
Fatigue load limit	9.15 kN
Reference speed	3600 r/min
Limiting speed	4500 r/min
Mass	0.27 kg
Shoulder diameter of inner ring	69 mm
Shoulder diameter of outer ring	74.5 mm
Raceway diameter	78.65 mm

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings

What are the types of cylindrical roller bearing NCF 2912 CV ? High-capacity cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
