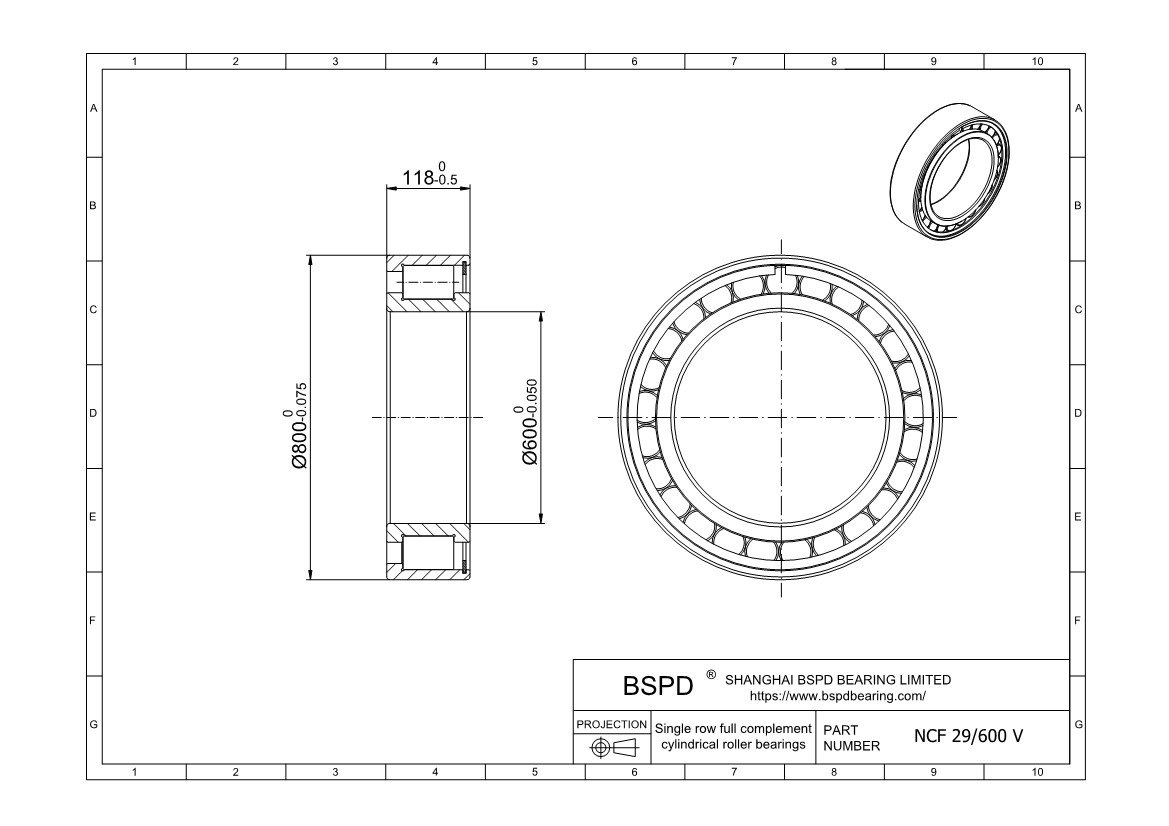

NCF 29/600 V High-capacity cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 600 mm； Outer Diameter: 800 mm； Width (Thickness): 118 mm;

REQUEST FOR QUOTE

Product Attributes

Product Number	NCF 29/600 V
Bore diameter	600 mm
Outside diameter	800 mm
Width	118 mm
Basic dynamic load rating	3360 kN
Basic static load rating	7500 kN
Fatigue load limit	550 kN
Reference speed	300 r/min
Limiting speed	380 r/min
Mass	170 kg
Shoulder diameter of inner ring	662 mm
Shoulder diameter of outer ring	726 mm
Raceway diameter	754 mm

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
