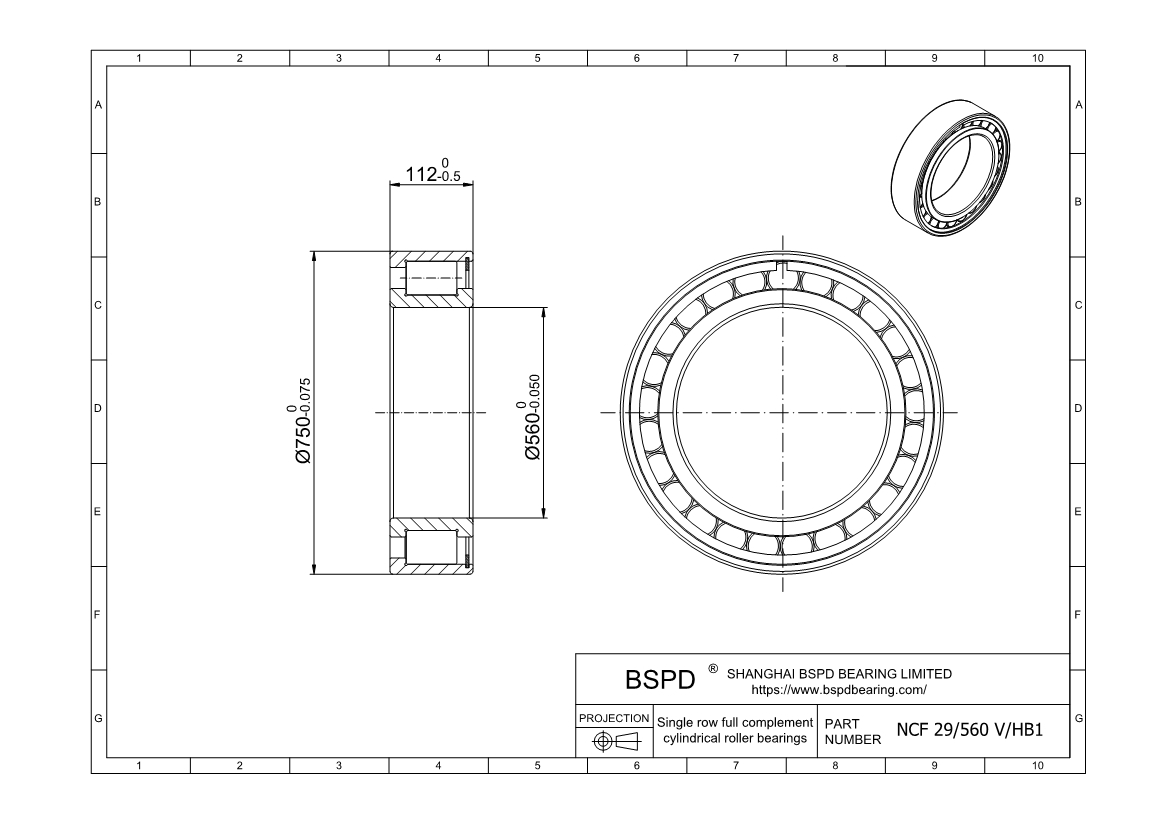

NCF 29/560 V/HB1 High-capacity cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 560 mm； Outer Diameter: 750 mm； Width (Thickness): 112 mm;

REQUEST FOR QUOTE

Product Attributes

Product Number	NCF 29/560 V/HB1
Bore diameter	560 mm
Outside diameter	750 mm
Width	112 mm
Basic dynamic load rating	3030 kN
Basic static load rating	6700 kN
Fatigue load limit	490 kN
Reference speed	320 r/min
Limiting speed	400 r/min
Mass	140 kg
Shoulder diameter of inner ring	628 mm
Shoulder diameter of outer ring	682 mm
Raceway diameter	709 mm

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
