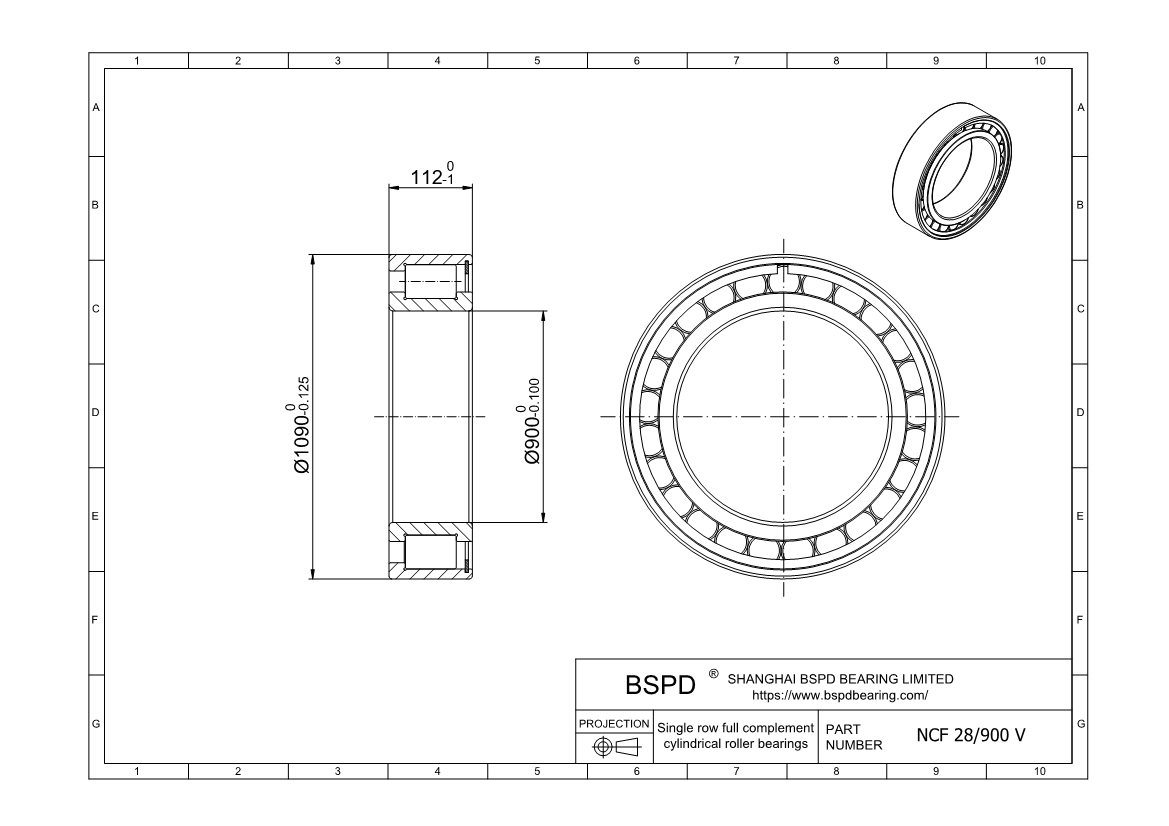

NCF 28/900 V High-capacity cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 900 mm； Outer Diameter: 1090 mm； Width (Thickness): 112 mm;

REQUEST FOR QUOTE

Product Attributes

Product Number	NCF 28/900 V
Bore diameter	900 mm
Outside diameter	1090 mm
Width	112 mm
Basic dynamic load rating	3190 kN
Basic static load rating	9150 kN
Fatigue load limit	655 kN
Reference speed	190 r/min
Limiting speed	240 r/min
Mass	210 kg
Shoulder diameter of inner ring	966 mm
Shoulder diameter of outer ring	1029 mm
Raceway diameter	1044 mm
