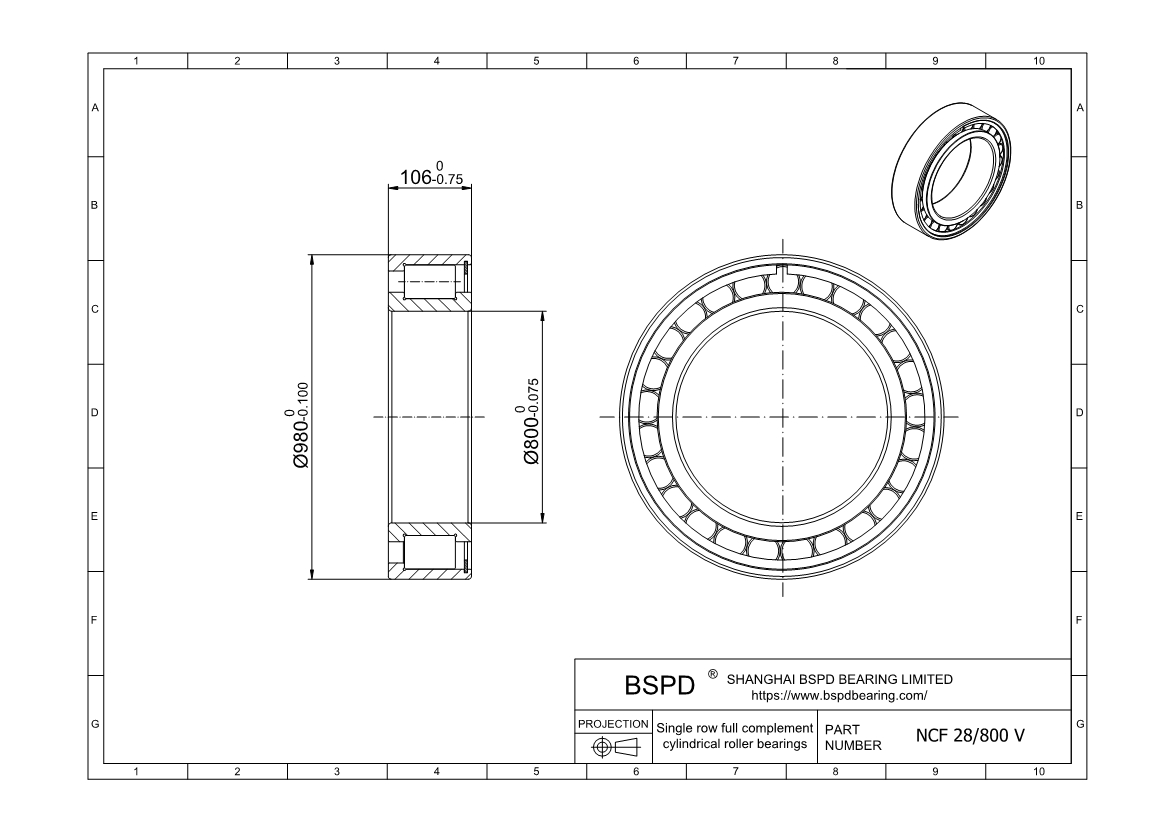

NCF 28/800 V High-capacity cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 800 mm； Outer Diameter: 980 mm； Width (Thickness): 106 mm;

NCF 28/800 V
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberNCF 28/800 V
Bore diameter800 mm
Outside diameter980 mm
Width106 mm
Basic dynamic load rating2750 kN
Basic static load rating7500 kN
Fatigue load limit550 kN
Reference speed220 r/min
Limiting speed280 r/min
Mass169 kg
Shoulder diameter of inner ring863 mm
Shoulder diameter of outer ring922 mm
Raceway diameter936 mm
NCF 28/800 V
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NCF 28/800 V ? High-capacity cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
  • Fast Delivery     √
  • Best Quality       √
  • Good Price        √
