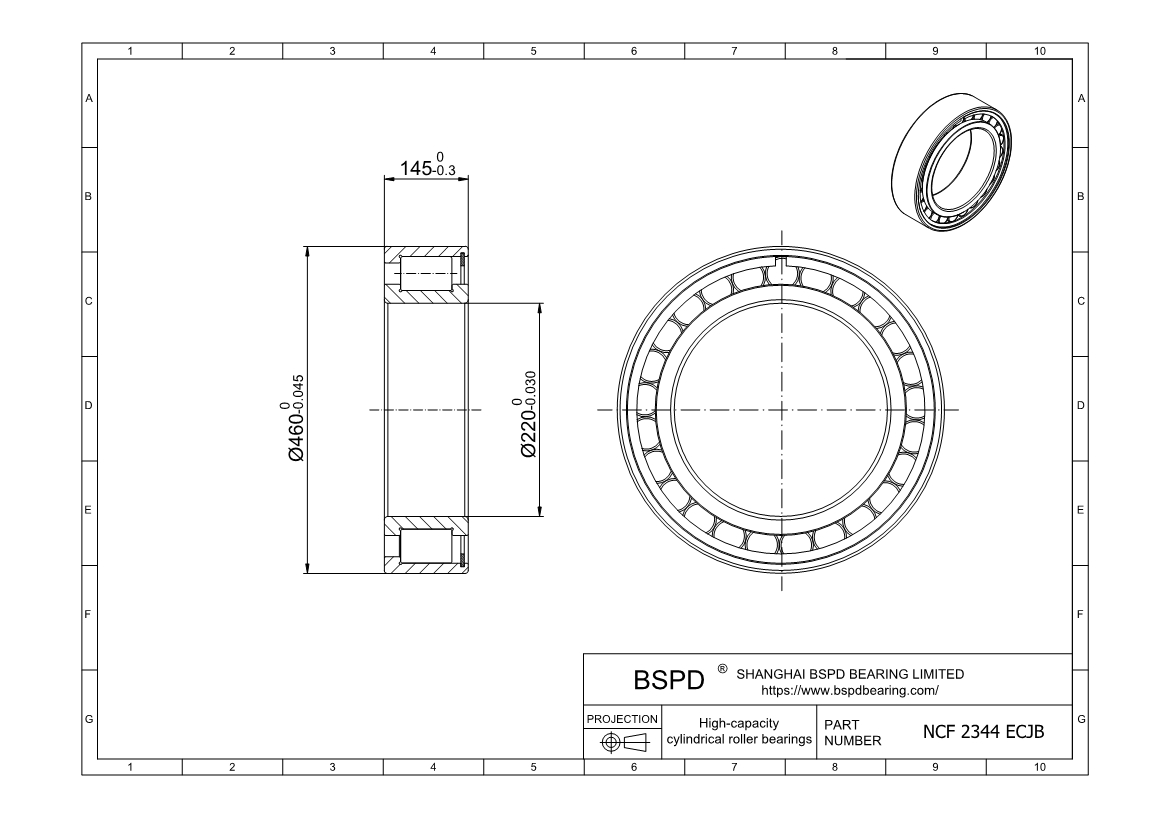

NCF 2344 ECJB
Single row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 220 mm； Outer Diameter: 460 mm； Width (Thickness): 145 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NCF 2344 ECJB |
| Bore diameter | 220 mm |
| Outside diameter | 460 mm |
| Width | 145 mm |
| Basic dynamic load rating | 2510 kN |
| Basic static load rating | 3650 kN |
| Fatigue load limit | 335 kN |
| Reference speed | 1300 r/min |
| Limiting speed | 2000 r/min |
| Mass | 116 kg |
| Shoulder diameter of inner ring | 302 mm |
| Shoulder diameter of outer ring | 392 mm |
| Raceway diameter | 413 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NCF 2344 ECJB ? Single row full complement cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
