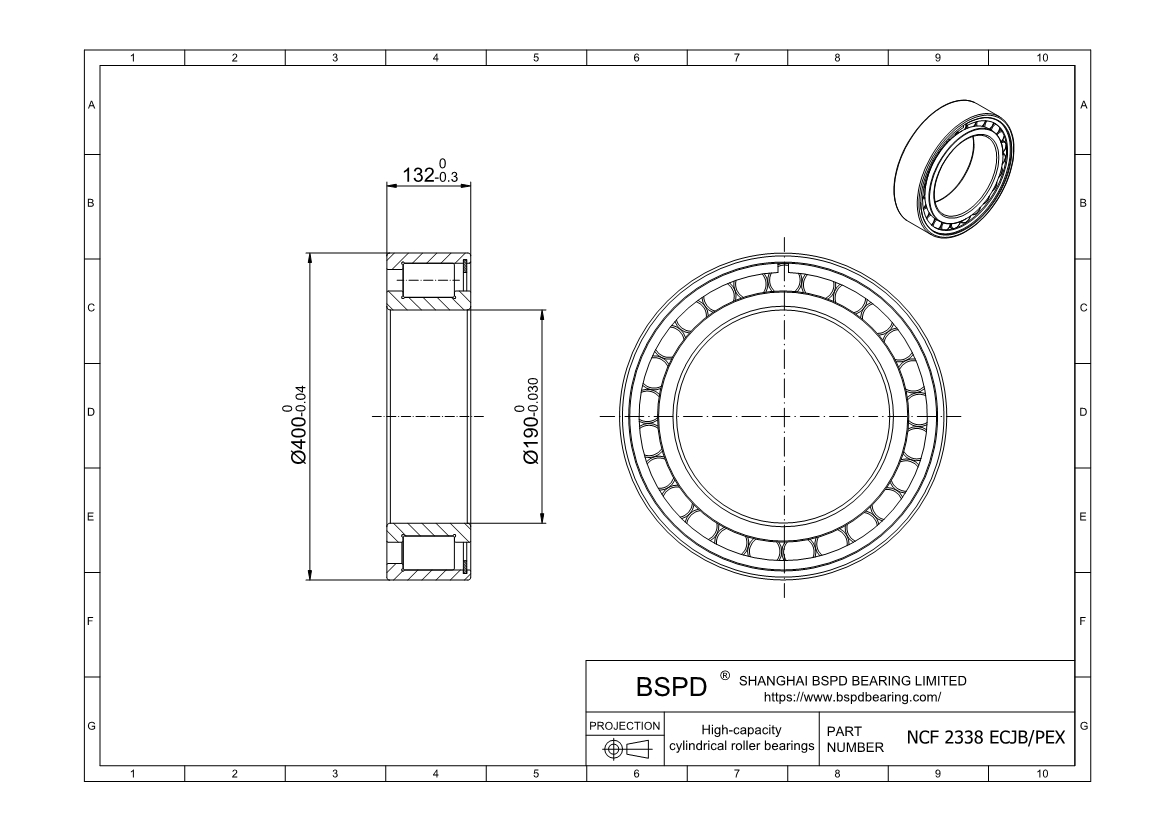

NCF 2338 ECJB/PEX
Single row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 190 mm； Outer Diameter: 400 mm； Width (Thickness): 132 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NCF 2338 ECJB/PEX |
| Bore diameter | 190 mm |
| Outside diameter | 400 mm |
| Width | 132 mm |
| Basic dynamic load rating | 2240 kN |
| Basic static load rating | 2750 kN |
| Fatigue load limit | 255 kN |
| Reference speed | 1700 r/min |
| Limiting speed | 2200 r/min |
| Mass | 78 kg |
| Shoulder diameter of inner ring | 262 mm |
| Shoulder diameter of outer ring | 342 mm |
| Raceway diameter | 360 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NCF 2338 ECJB/PEX ? Single row full complement cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
