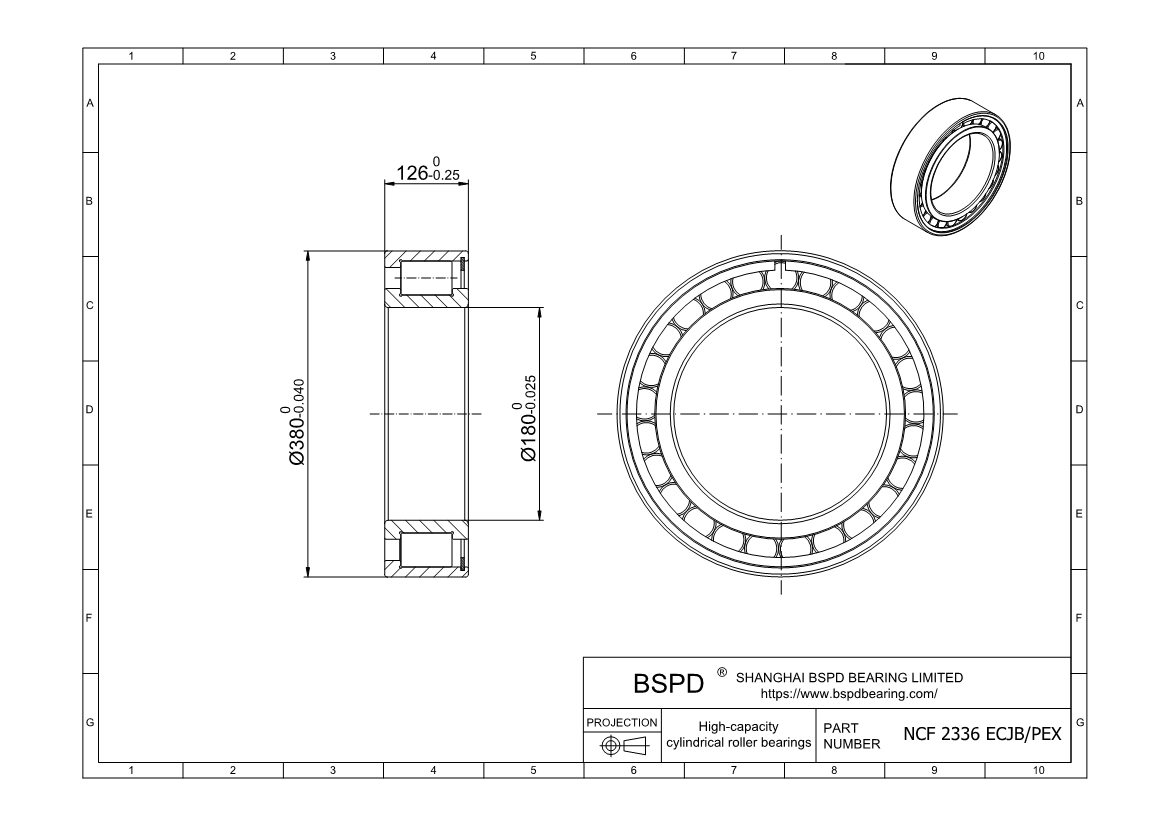

NCF 2336 ECJB/PEX Single row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 180 mm； Outer Diameter: 380 mm； Width (Thickness): 126 mm;

REQUEST FOR QUOTE

Product Attributes

Product Number	NCF 2336 ECJB/PEX
Bore diameter	180 mm
Outside diameter	380 mm
Width	126 mm
Basic dynamic load rating	1960 kN
Basic static load rating	2400 kN
Fatigue load limit	232 kN
Reference speed	1800 r/min
Limiting speed	2400 r/min
Mass	67.5 kg
Shoulder diameter of inner ring	247 mm
Shoulder diameter of outer ring	320 mm
Raceway diameter	339 mm

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings

What are the types of cylindrical roller bearing NCF 2336 ECJB/PEX ? Single row full complement cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
