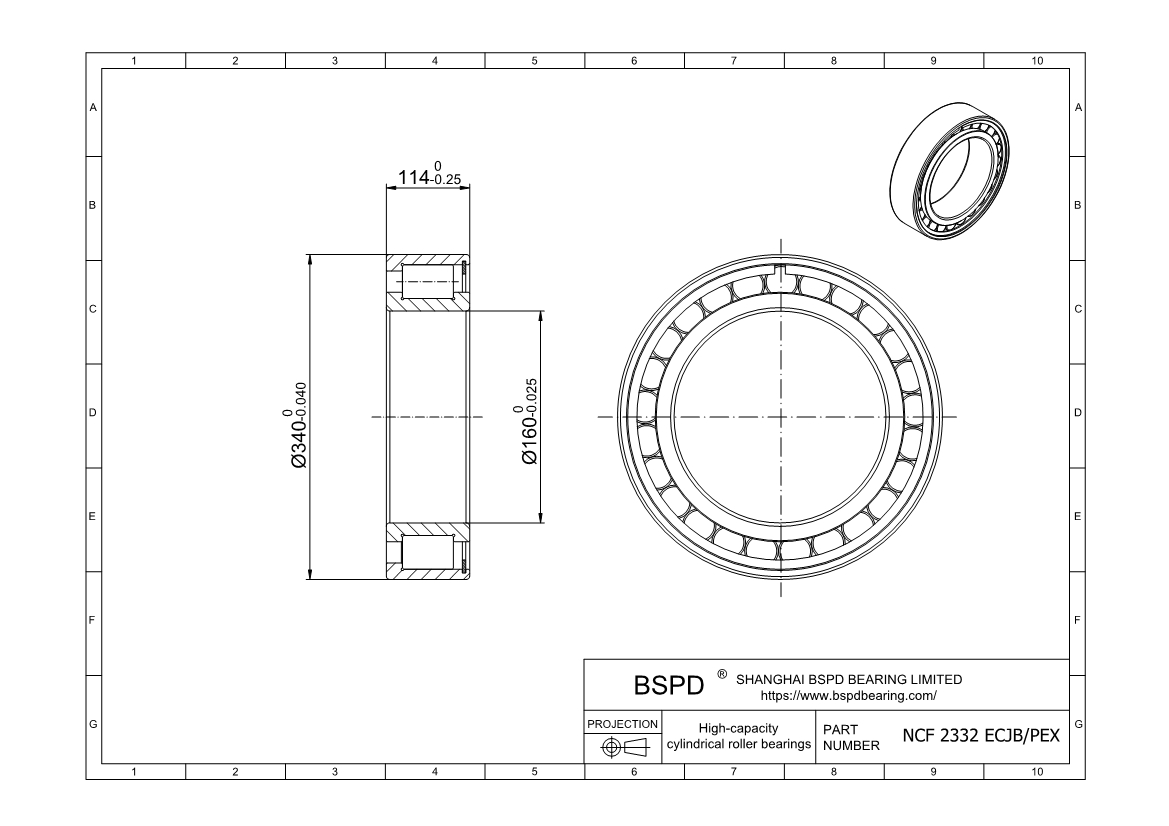

NCF 2332 ECJB/PEX
Single row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 160 mm； Outer Diameter: 340 mm； Width (Thickness): 114 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NCF 2332 ECJB/PEX |
| Bore diameter | 160 mm |
| Outside diameter | 340 mm |
| Width | 114 mm |
| Basic dynamic load rating | 1600 kN |
| Basic static load rating | 2000 kN |
| Fatigue load limit | 196 kN |
| Reference speed | 2000 r/min |
| Limiting speed | 2800 r/min |
| Mass | 50.5 kg |
| Shoulder diameter of inner ring | 221 mm |
| Shoulder diameter of outer ring | 281 mm |
| Raceway diameter | 300 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NCF 2332 ECJB/PEX ? Single row full complement cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
