NCF 2328 ECJB
Single row full complement cylindrical roller bearings

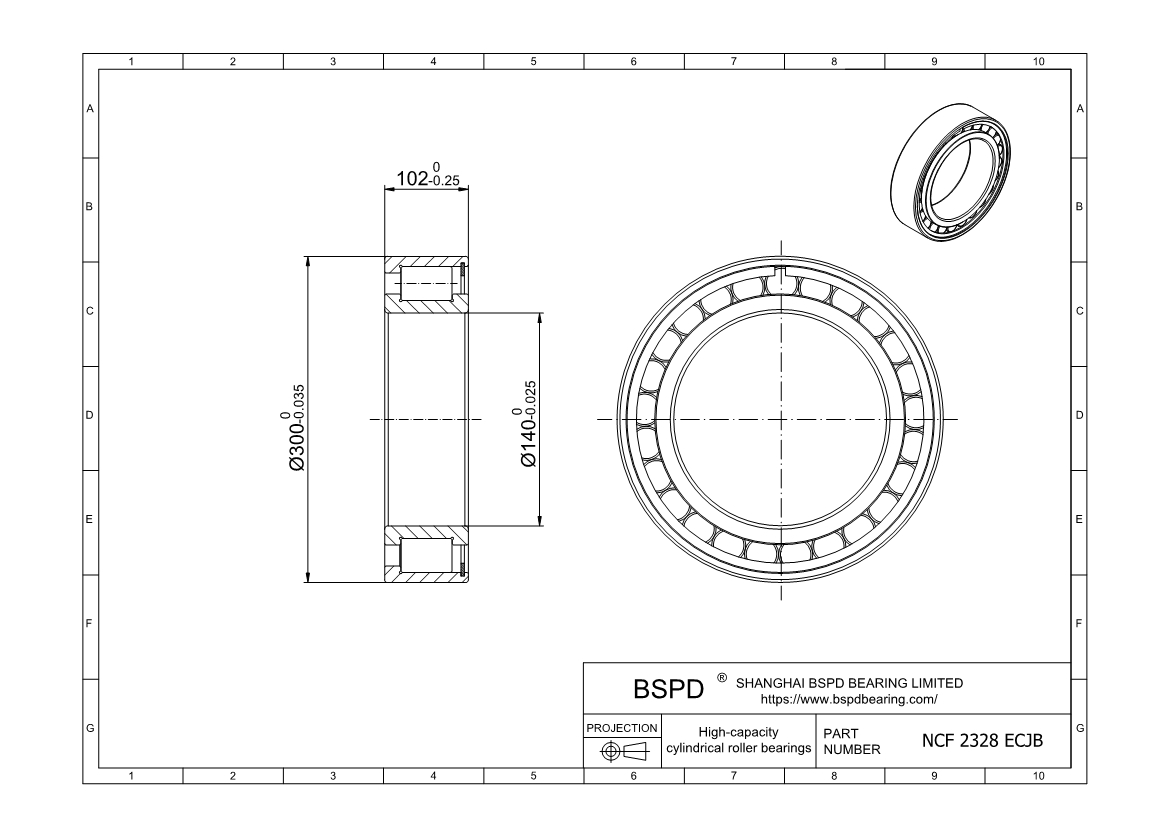

Dimensions: Bore (Inner) Diameter: 140 mm； Outer Diameter: 300 mm； Width (Thickness): 102 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NCF 2328 ECJB |
| Bore diameter | 140 mm |
| Outside diameter | 300 mm |
| Width | 102 mm |
| Basic dynamic load rating | 1250 kN |
| Basic static load rating | 1530 kN |
| Fatigue load limit | 163 kN |
| Reference speed | 2400 r/min |
| Limiting speed | 3200 r/min |
| Mass | 35.5 kg |
| Shoulder diameter of inner ring | 195 mm |
| Shoulder diameter of outer ring | 251 mm |
| Raceway diameter | 264 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NCF 2328 ECJB ? Single row full complement cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
