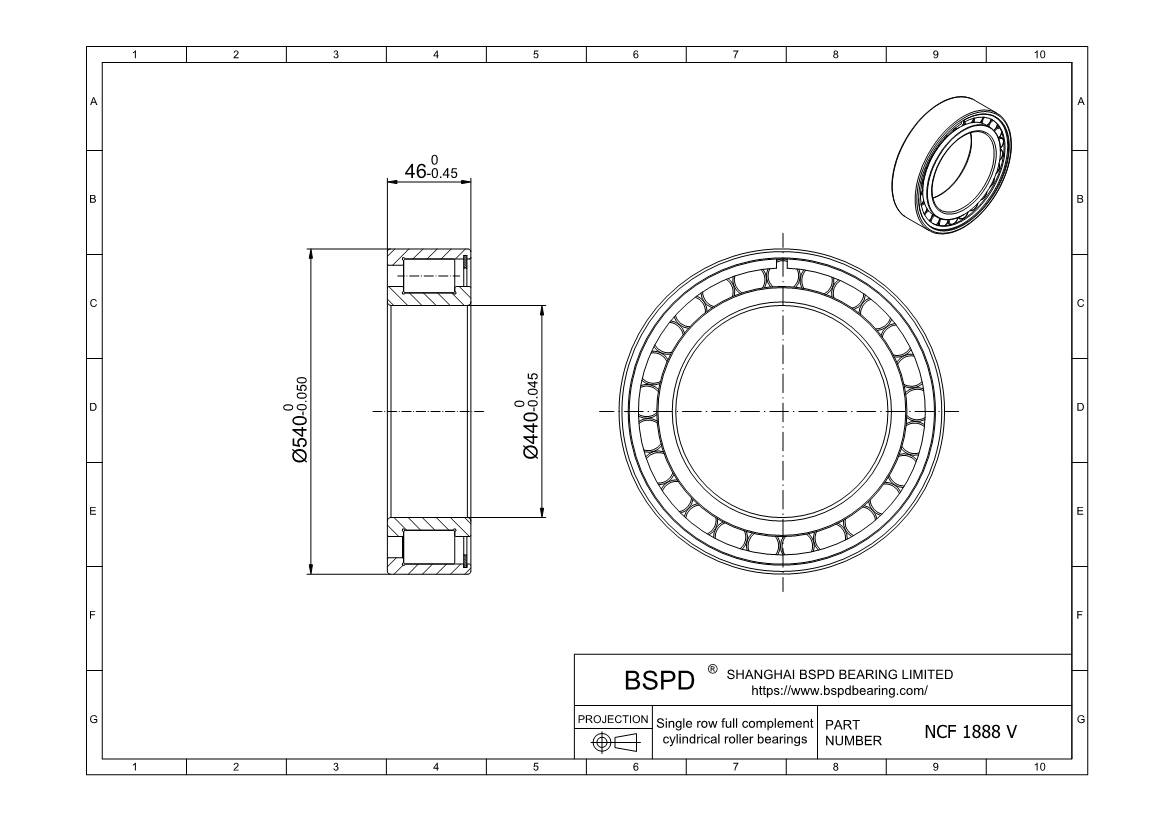

NCF 1888 V High-capacity cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 440 mm； Outer Diameter: 540 mm； Width (Thickness): 46 mm;

NCF 1888 V
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberNCF 1888 V
Bore diameter440 mm
Outside diameter540 mm
Width46 mm
Basic dynamic load rating671 kN
Basic static load rating1460 kN
Fatigue load limit125 kN
Reference speed450 r/min
Limiting speed560 r/min
Mass22 kg
Shoulder diameter of inner ring474 mm
Shoulder diameter of outer ring506 mm
Raceway diameter516 mm
NCF 1888 V
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NCF 1888 V ? High-capacity cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
  • Fast Delivery     √
  • Best Quality       √
  • Good Price        √
