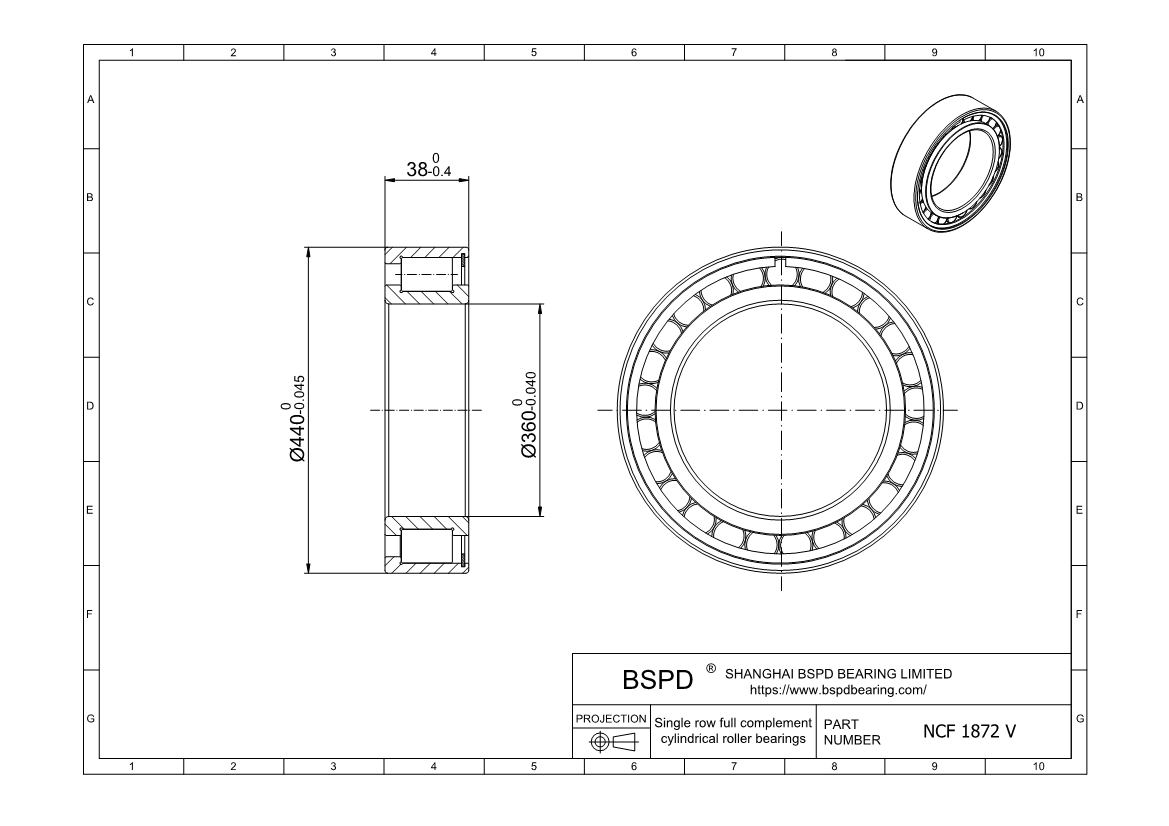

NCF 1872 V
High-capacity cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 360 mm； Outer Diameter: 440 mm； Width (Thickness): 38 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NCF 1872 V |
| Bore diameter | 360 mm |
| Outside diameter | 440 mm |
| Width | 38 mm |
| Basic dynamic load rating | 402 kN |
| Basic static load rating | 900 kN |
| Fatigue load limit | 76.5 kN |
| Reference speed | 560 r/min |
| Limiting speed | 700 r/min |
| Mass | 11.5 kg |
| Shoulder diameter of inner ring | 388 mm |
| Shoulder diameter of outer ring | 413 mm |
| Raceway diameter | 418.9 mm |
Print PDF
Request a 3D CAD Model
