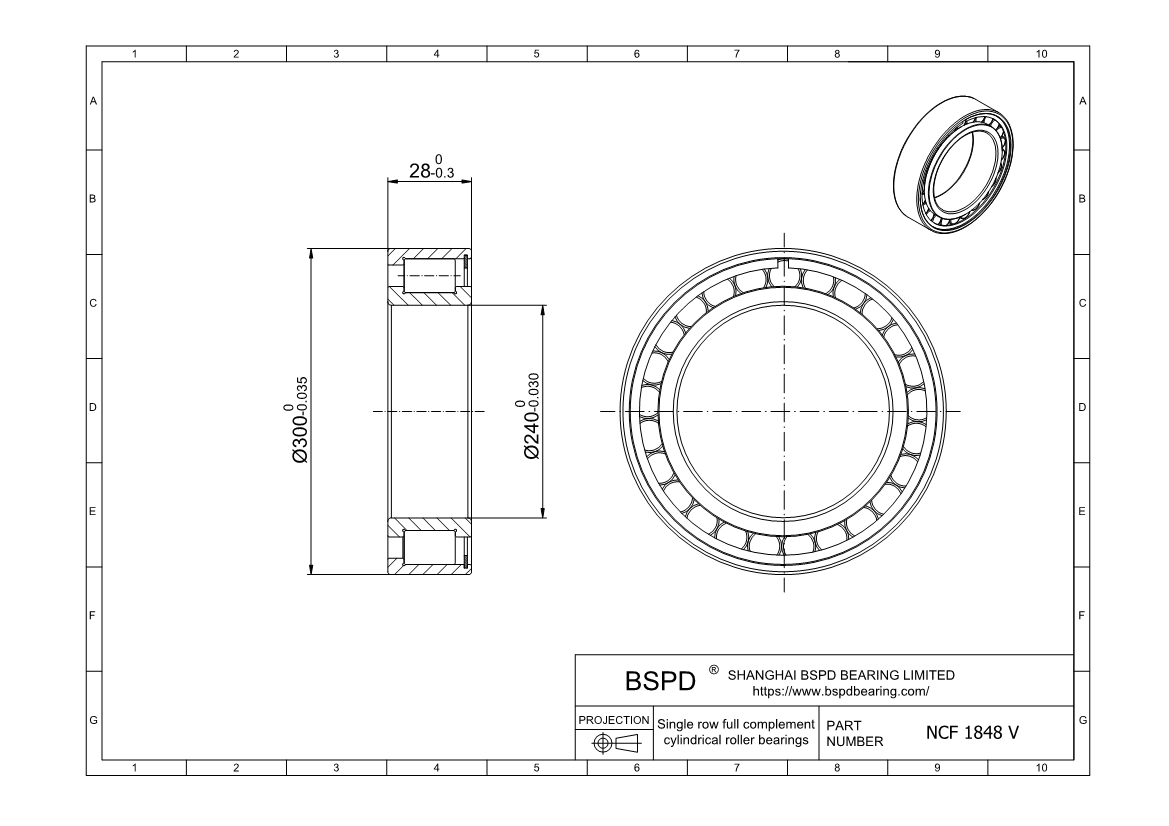

NCF 1848 V High-capacity cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 240 mm； Outer Diameter: 300 mm； Width (Thickness): 28 mm;

REQUEST FOR QUOTE

Product Attributes

Product Number	NCF 1848 V
Bore diameter	240 mm
Outside diameter	300 mm
Width	28 mm
Basic dynamic load rating	260 kN
Basic static load rating	510 kN
Fatigue load limit	47.5 kN
Reference speed	900 r/min
Limiting speed	1100 r/min
Mass	4.4 kg
Shoulder diameter of inner ring	263 mm
Shoulder diameter of outer ring	279 mm
Raceway diameter	287 mm
