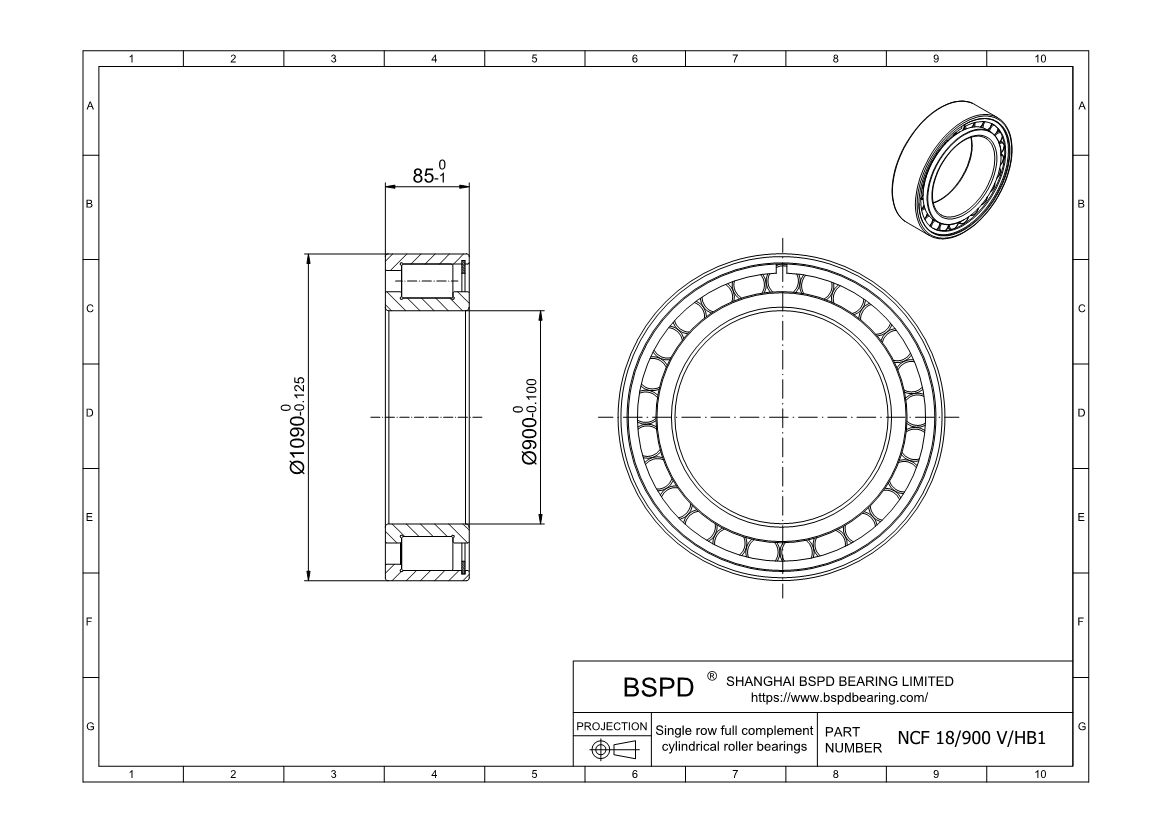

NCF 18/900 V/HB1 High-capacity cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 900 mm； Outer Diameter: 1090 mm； Width (Thickness): 85 mm;

REQUEST FOR QUOTE

Product Attributes

Product Number	NCF 18/900 V/HB1
Bore diameter	900 mm
Outside diameter	1090 mm
Width	85 mm
Basic dynamic load rating	2240 kN
Basic static load rating	5700 kN
Fatigue load limit	405 kN
Reference speed	190 r/min
Limiting speed	240 r/min
Mass	154 kg
Shoulder diameter of inner ring	966 mm
Shoulder diameter of outer ring	1029 mm
Raceway diameter	1044 mm
