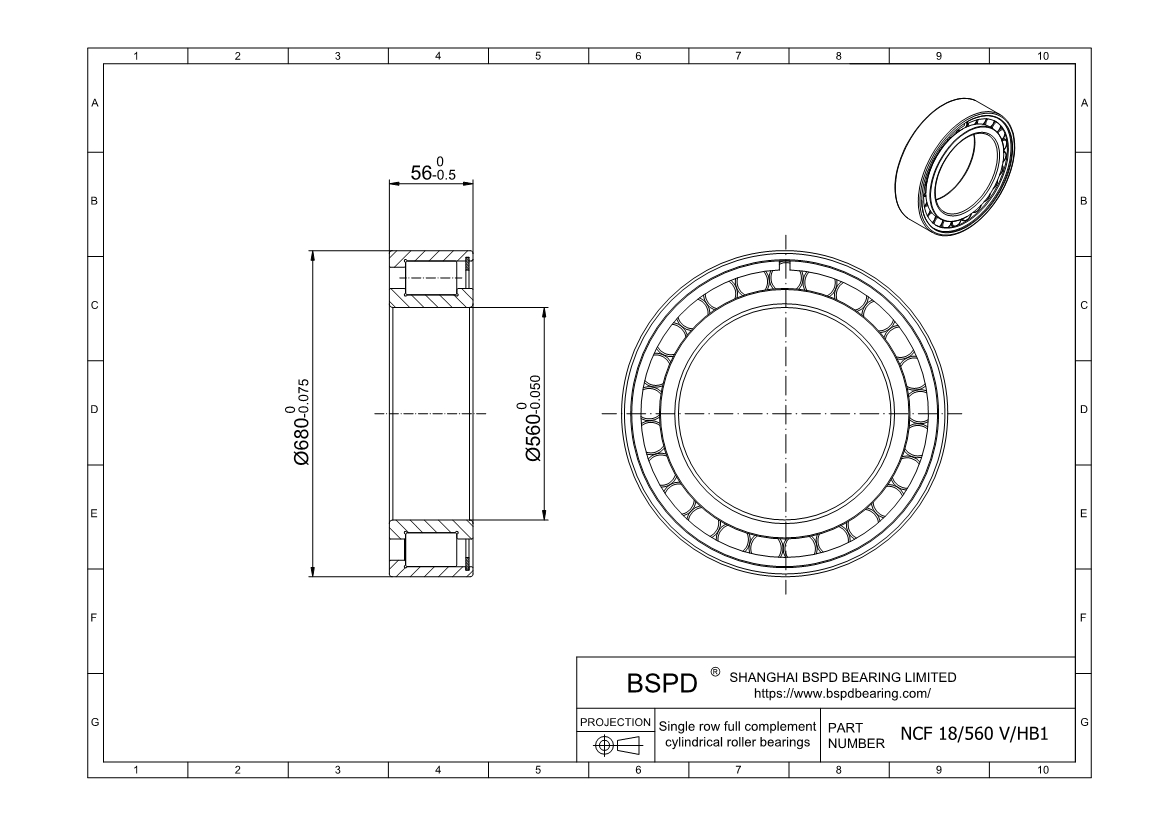

NCF 18/560 V/HB1
High-capacity cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 560 mm； Outer Diameter: 680 mm； Width (Thickness): 56 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NCF 18/560 V/HB1 |
| Bore diameter | 560 mm |
| Outside diameter | 680 mm |
| Width | 56 mm |
| Basic dynamic load rating | 1020 kN |
| Basic static load rating | 2360 kN |
| Fatigue load limit | 186 kN |
| Reference speed | 340 r/min |
| Limiting speed | 430 r/min |
| Mass | 39 kg |
| Shoulder diameter of inner ring | 603 mm |
| Shoulder diameter of outer ring | 643 mm |
| Raceway diameter | 655 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NCF 18/560 V/HB1 ? High-capacity cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
