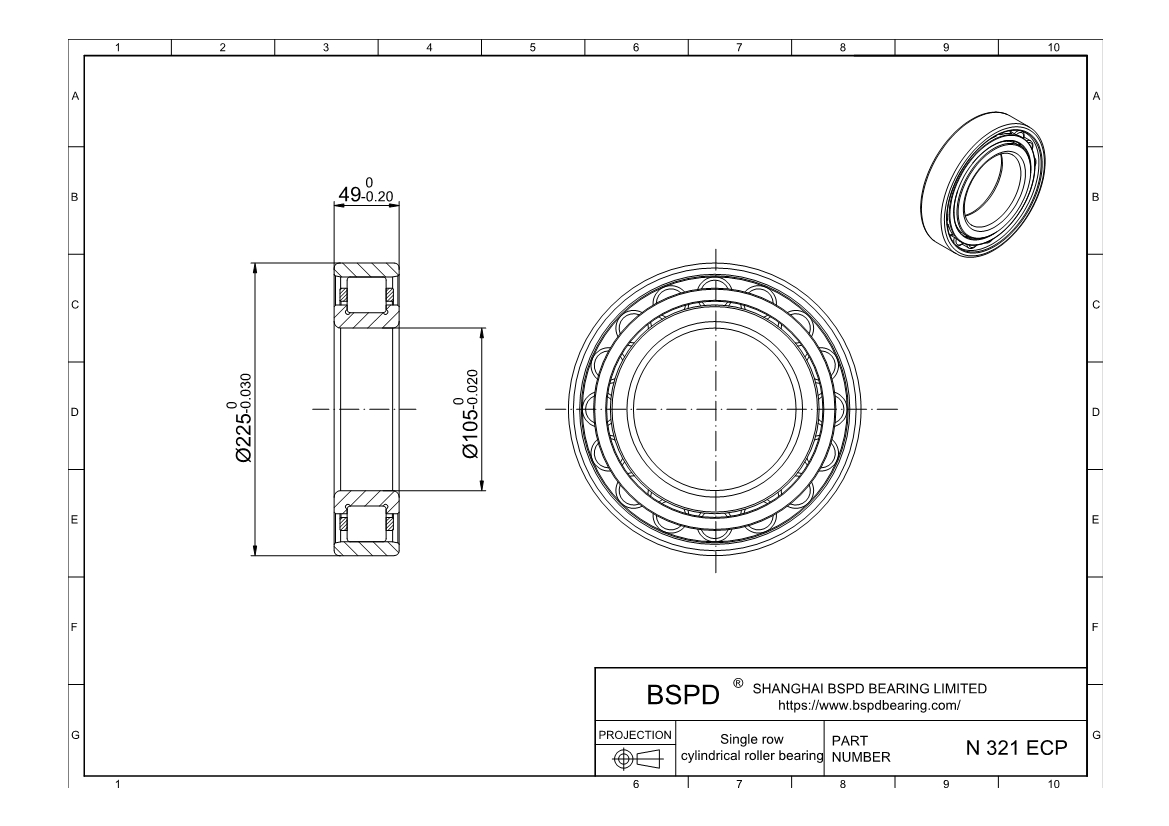

N 321 ECP Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 105 mm； Outer Diameter: 225 mm； Width (Thickness): 49 mm;

REQUEST FOR QUOTE

Product Attributes

Product Number	N 321 ECP
Bore diameter	105 mm
Outside diameter	225 mm
Width	49 mm
Basic dynamic load rating	500 kN
Basic static load rating	500 kN
Fatigue load limit	57 kN
Reference speed	3200 r/min
Limiting speed	3800 r/min
Mass	8.6 kg
Shoulder diameter of inner ring	145 mm
Shoulder diameter of outer ring	–
Raceway diameter	201 mm
