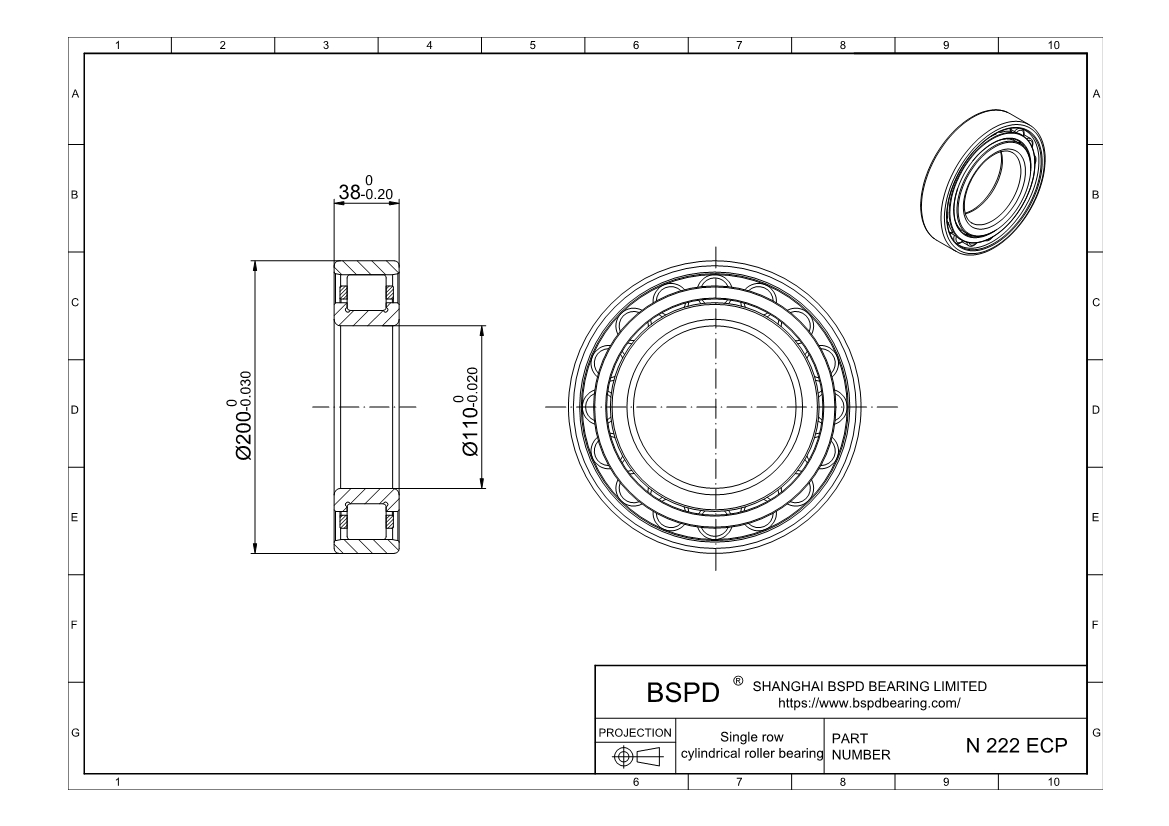

N 222 ECP Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 110 mm； Outer Diameter: 200 mm； Width (Thickness): 38 mm;

REQUEST FOR QUOTE

Product Attributes

Product Number	N 222 ECP
Bore diameter	110 mm
Outside diameter	200 mm
Width	38 mm
Basic dynamic load rating	335 kN
Basic static load rating	365 kN
Fatigue load limit	42.5 kN
Reference speed	3600 r/min
Limiting speed	4000 r/min
Mass	4.8 kg
Shoulder diameter of inner ring	141 mm
Shoulder diameter of outer ring	–
Raceway diameter	180.5 mm

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings

What are the types of cylindrical roller bearing N 222 ECP ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
