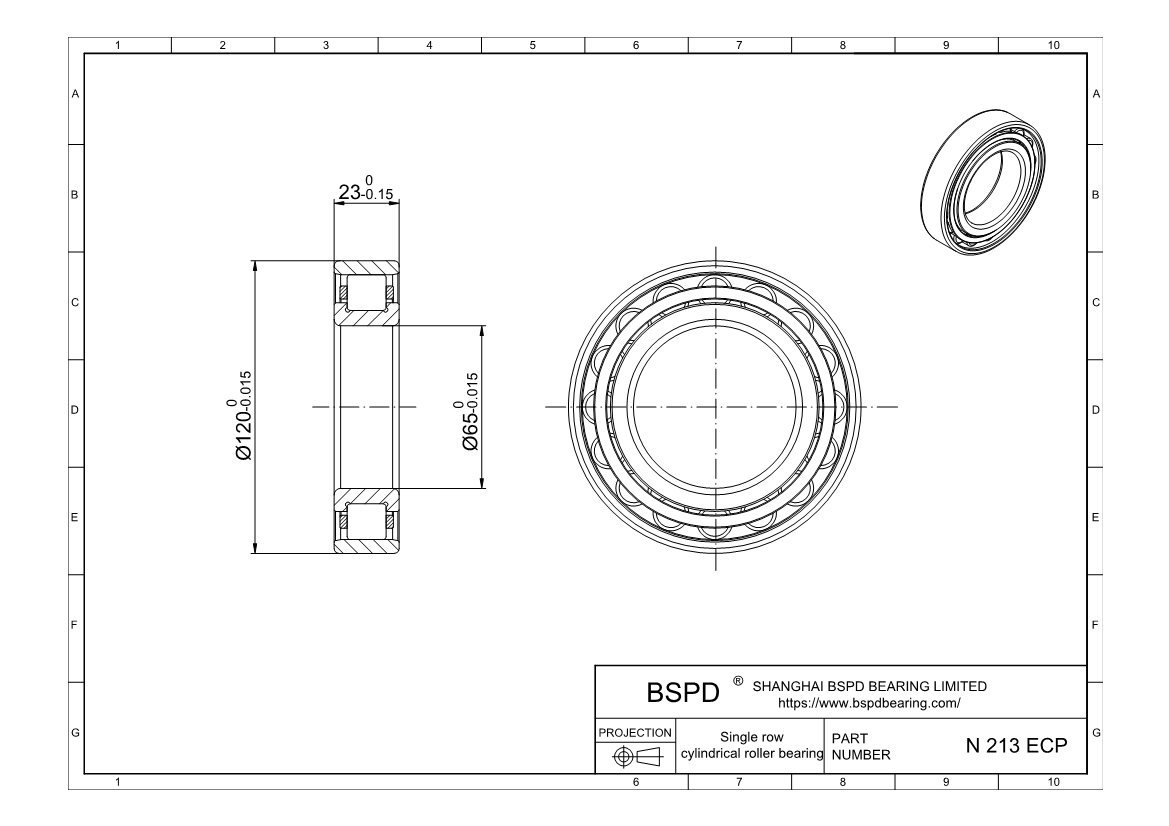

N 213 ECP
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 65 mm； Outer Diameter: 120 mm； Width (Thickness): 23 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | N 213 ECP |
| Bore diameter | 65 mm |
| Outside diameter | 120 mm |
| Width | 23 mm |
| Basic dynamic load rating | 122 kN |
| Basic static load rating | 118 kN |
| Fatigue load limit | 15.6 kN |
| Reference speed | 6300 r/min |
| Limiting speed | 6700 r/min |
| Mass | 1.05 kg |
| Shoulder diameter of inner ring | 84.4 mm |
| Shoulder diameter of outer ring | – |
| Raceway diameter | 108.5 mm |
Print PDF
Request a 3D CAD Model
