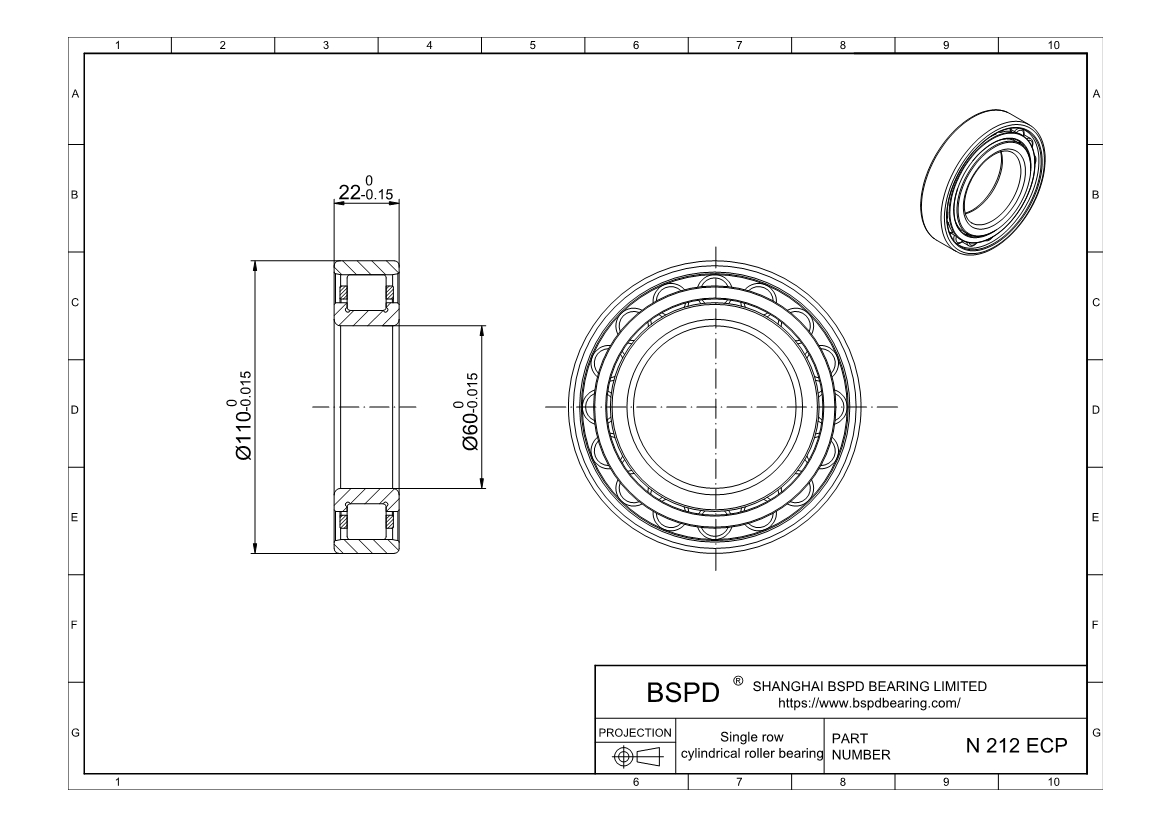

N 212 ECP
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 60 mm； Outer Diameter: 110 mm； Width (Thickness): 22 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | N 212 ECP |
| Bore diameter | 60 mm |
| Outside diameter | 110 mm |
| Width | 22 mm |
| Basic dynamic load rating | 108 kN |
| Basic static load rating | 102 kN |
| Fatigue load limit | 13.4 kN |
| Reference speed | 6700 r/min |
| Limiting speed | 7500 r/min |
| Mass | 0.79 kg |
| Shoulder diameter of inner ring | 77.5 mm |
| Shoulder diameter of outer ring | – |
| Raceway diameter | 100 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing N 212 ECP ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
