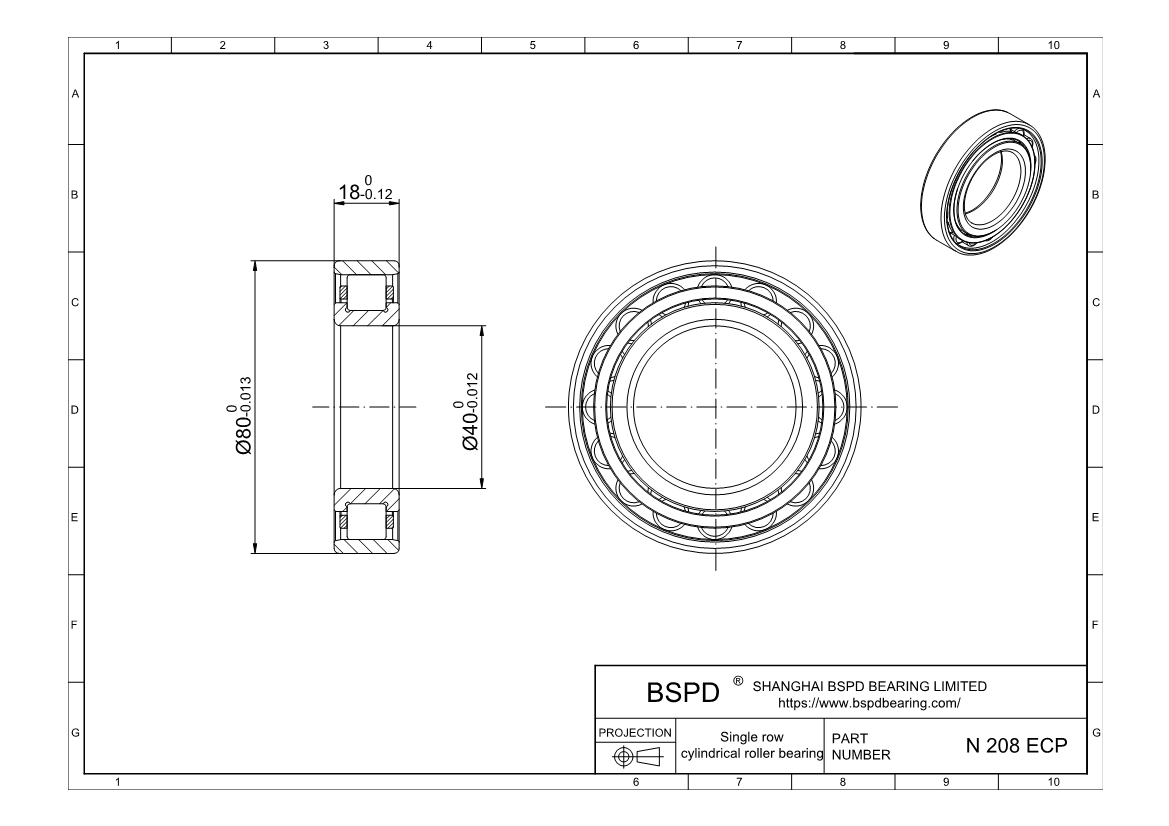

N 208 ECP Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 40 mm； Outer Diameter: 80 mm； Width (Thickness): 18 mm;

REQUEST FOR QUOTE

Product Attributes

Product Number	N 208 ECP
Bore diameter	40 mm
Outside diameter	80 mm
Width	18 mm
Basic dynamic load rating	62 kN
Basic static load rating	53 kN
Fatigue load limit	6.7 kN
Reference speed	9500 r/min
Limiting speed	11000 r/min
Mass	0.37 kg
Shoulder diameter of inner ring	54 mm
Shoulder diameter of outer ring	–
Raceway diameter	71.5 mm

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
